EQL-25G27G+4DB-292MF Preliminary

Passive Amplitude Equalizer

Product Feature

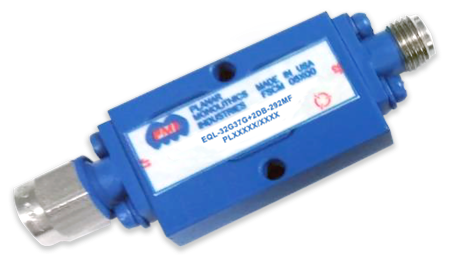

PMI Model No. EQL-25G27G+4DB-292MF is a passive amplitude equalizer that operates over the frequency range of 25.0 to 27.0 GHz. This unit has a maximum input power of 0.5 watts CW and a maximum VSWR of 2.0:1. The unit is supplied with 2.92mm connectors in a housing that measures 1.10" x 0.67" x 0.22"

Product Specifications

General Parameters:
Status: Preliminary
Frequency Range: 25.0 to 27.0 GHz
Frequency Min: 25 GHz
Frequency Max: 27 GHz
Maximum Input Power: 0.5 Watts CW
VSWR: 2.0:1 Max
Insertion Loss: 0.5 dB Goal
Slopes: This equilizer has a positive slope which equalizes cable loss.
Amplitude @ 17.6 GHz: 0 dB
Linearity: ±1.0 dB
Connectors In / Out: 2.92mm Male J1,
2.92mm Female J2
Size: 1.10" x 0.67" x 0.22"
Finish: Finish: Painted Blue
Environmental Ratings:
Humidity: MIL-STD-202, Method 103B Cond. B
Shock: MIL-STD-202, Method 213B Cond. B
Vibration: MIL-STD-202, Method 204D Cond. B
Altitude: MIL-STD-202, Method 105C Cond. B
Temperature Cycle: MIL-STD-202, Method 107
