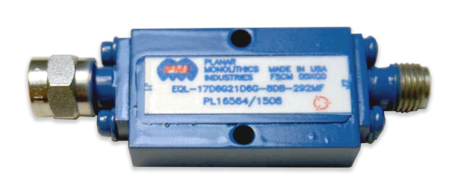

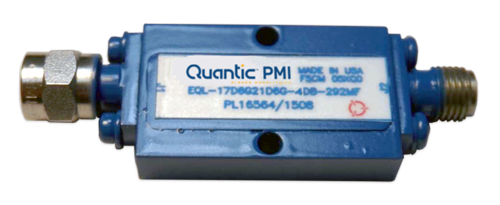

Quantic PMI Model EQL-17D6G21D6G-4DB-292MF is a passive amplitude equalizer that operates over the frequency range of 17.6 to 21.6 GHz that has a maximum input power of 0.5 W CW and a maximum  VSWR of 2.0:1. The unit is supplied with 2.92 connectors in a housing that measures 1.10" x 0.67" x 0.22".

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 17.6 to 21.6
Frequency Min (GHz): 17.6
Frequency Max (GHz): 21.6
Input Power Max: 0.5 W CW
VSWR: 2.0:1 Max
Slope: Amplitude @ 17.6 GHz
Amplitude -4 dB @ 21.6 GHz
Amplitude = -1 dB/GHz*
(Frequency above 17.6 GHz In GHz)+(Amplitude
@ 17.6 GHz) - Measured -1.04
Linearity: ±0.5 dB
Connectors In / Out: 2.92mm Male / Female
Size: 1.10" x 0.67" x 0.22"
Finish: Painted Blue
Export Classification (ECCN): EAR99
Environmental Ratings:
Temperature (Operating): -40 °C to +85 °C
Temperature (Storage): -65 °C to +125 °C
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107
