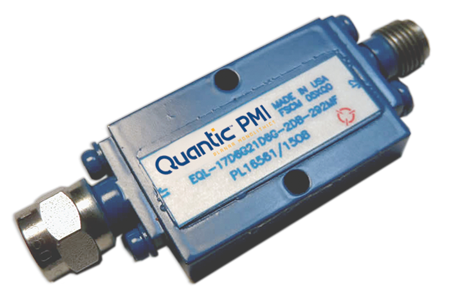

| General Parameters: |
|---|
| Status: | Active |
|---|
| Frequency Range (GHz): | 17.6 to 21.6 |
|---|
| Frequency Min (GHz): | 17.6 |
|---|
| Frequency Max (GHz): | 21.6 |
|---|
| Input Power Max: | 0.5 W CW |
|---|
| VSWR: | 2.0:1 Max |
|---|
| Slope: | This equilizer has a negative slope which simulates cable loss. |
|---|
| Slope (Frequency/Amplitude): | Amplitude @ 17.6 GHz - Measured -048 dB /GHz,
Amplitude -2 dB @ 21.6 GHz,
Amplitude = -0.5 dB / GHz* |
|---|
| Amplitude @ 17.6 GHz: | -1 dB Min - Measured -1.32 dB |
|---|
| Linearity: | ±0.5 dB |
|---|
| Connectors In / Out: | 2.92mm Male / Female |
|---|
| Size: | 1.10" x 0.67" x 0.22" |
|---|
| Finish: | Painted Blue |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Temperature (Operating): | -40 °C to +85 °C |
|---|
| Temperature (Storage): | -65 °C to +125 °C |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107 |
|---|
