| General Parameters: |
|---|
| Status: | Active |
|---|
| Frequency Range: | 17.5 to 21.5 GHz |
|---|
| Frequency Min: | 17.5 GHz |
|---|
| Frequency Max: | 21.5 GHz |
|---|
| Maximum Input Power: | 0.5 Watts CW |
|---|
| VSWR: | 2.0:1 max. - Measured 1.53:1 |
|---|
| Insertion Loss: | 6 dB max. - Measured 1.80 dB |
|---|
| Slopes: | This equalizer has a positive slope which equalizes cable loss. |
|---|
| Slope (Frequency/Amplitude): | 17.5 GHz/ -1.7 dB, 18.0 GHz/ -1.6 dB, 18.5 GHz/ -1.5 dB, 19.0 GHz/ -1.4 dB, 19.5 GHz/ 1.2 dB, 20.0 GHz/ -0.9 dB, 20.5 GHz/ -0.6 dB, 21.0 GHz/ -0.3 dB, 21.5 GHz/ 0 dB |
|---|
| Accuracy @ Defined Points: | ±0.1 dB |
|---|
| Connectors In / Out: | 2.92mm Male J1, 2.92mm Female J2 |
|---|

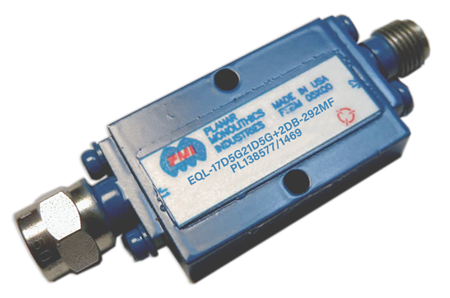

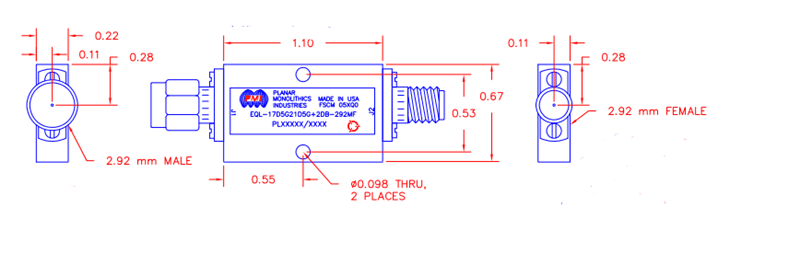

| Size: | 1.10" x 0.67" x 0.22" |
|---|
| Finish: | Finish: Painted Blue |
|---|
| Environmental Ratings: |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107 |
|---|
