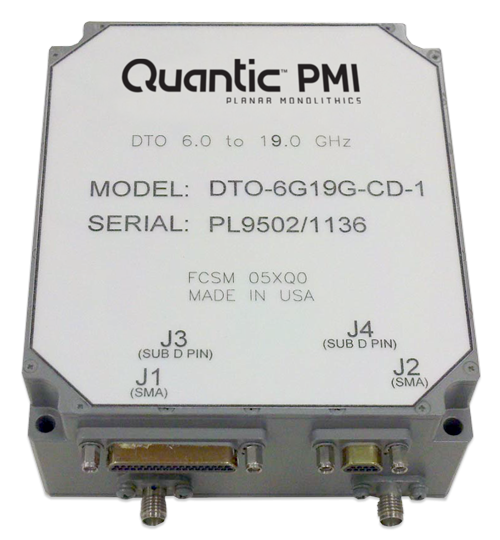

| General Parameters: |
|---|
| Status: | Active |
|---|
| Frequency Range: | 6.0 to 19.0 GHz |
|---|
| Frequency Min: | 6 GHz |
|---|
| Frequency Max: | 19 GHz |
|---|
| Frequency Accuracy: | ±0.1% Max. @ +25C - Measured ±0.09% |
|---|
| Frequency Drift: | ±0.1 MHz/C Max. - Measured ±0.1 MHz |
|---|
| Frequency Settling: | ±4.0 MHz Max. within 1 usec. |
|---|
| Modulation Bandwidth (3dB): | DC to 10 MHz Min. |
|---|
| Bandwidth Sensitivity Variation: | 1.1:1 Max. |
|---|
| Frequency Deviation Bandwidth: | ±250 MHz Min. @ 2 V peak-peak - Measured ±250 MHz |
|---|
| Output Power: | +10 dBm Min. - Measured +10.5 dBm |
|---|
| RF Power Variation: | ±3.0 dB Max. Including temperature and frequency - Measured ±2.5 dB |
|---|
| Phase Noise: | -60 dBc/ Hz typ. @ 100 kHz offset - Measured -60 dBc/ Hz |
|---|
| Harmonics: | -30 dBc Max. - Measured -30 dBc |
|---|
| Spurious: | -55 dBc Max. - Measured -55 dBc |
|---|
| Linearized Frequency Tuning Step Size: | LSB 0.5 MHz Nominal for full-band |
|---|
| DC Power: | +15 V ± 0.5 V @ 1.0 A - Measured +15 V ± 0.5 V @ 1249 mA, -15 V ± 0.5 V @ 0.3 A - Measured -15 V ± 0.5 V @ 176 mA, +5 V ± 0.5 V @ 0.5 A - Measured +5 V ± 0.5 V @ 25 mA, +28 V ± 2 V @ 3.0 A, 6.0 A - Measured +28 V ± 2 V @ 2.0 A |
|---|
| Pulling: | ±1 MHz Max. @ VSWR 2:1 |
|---|
| Pushing: | ±500 kHz/V Max. |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -40ºC to +70ºC |
|---|
| Non-Operating Temperature: | -40ºC to +100ºC |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107G Cond. A |
|---|
