DTO-0R5G2D5G-CD-1 Active

Digitally Controlled Oscillator

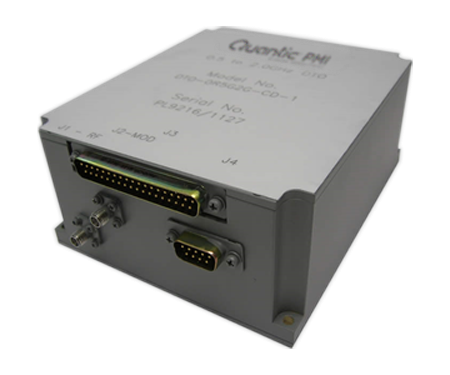

Quantic PMI Model No. DTO-0R5G2D5G-CD-1 is a digitally controlled oscillator (DTO's) covering the frequency range of 500MHz to 2.5 GHz. This model is designed to withstand stringent military ground or airborne environments. Incorporated in the design is the latest internal digital calibration techniques such that frequency drift over the operating temperature range is minimal. This unit offers fast switching speeds and a stable frequency output with low phase noise.

Product Specifications

General Parameters:
Status: Active
Frequency Range: 0.5 to 2.5 GHz
Frequency Min: 0.5 GHz
Frequency Max: 2.5 GHz
Frequency Accuracy: ±2.5 MHz Max @ +25 ºC
Frequency Drift: ±0.1MHz/C Max
Frequency Settling: ±2.0 MHz Max within 1 µs
Modulation Bandwidth (3dB): DC to 9 MHz Min
Bandwidth Sensitivity Variation: 1.1:1 Max
Frequency Deviation Bandwidth: 100 MHz Min @ 2 V peak-peak
Output Power: +10 dBm Min
RF Power Variation: ±3.0 dB Max Including temperature and frequency
Phase Noise: -60 dBc/Hz Typ @ 100 kHz offset
Harmonics: -20 dBc Max
Spurious: -55 dBc Max
Linearized Frequency Tuning Step Size: LSB 0.5 MHz Nom for full band
DC Power: +15 V ± 0.5 V
-15 V ± 0.5 V
+5 V ± 0.5 V
+28V ± 2.0 V
Pulling: 1 MHz Max @ VSWR 2:1
Pushing: ±150 kHz/V Max
Environmental Ratings:
Operating Temperature: -40 ºC to +70 ºC
Non-Operating Temperature: -40 ºC to +100 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
