DTA-6380M7440M-60-9BDIFF-SFF Active

Voltage Variable Attenuator

DTA-6380M7440M-60-9BDIFF-SFF
Product Feature

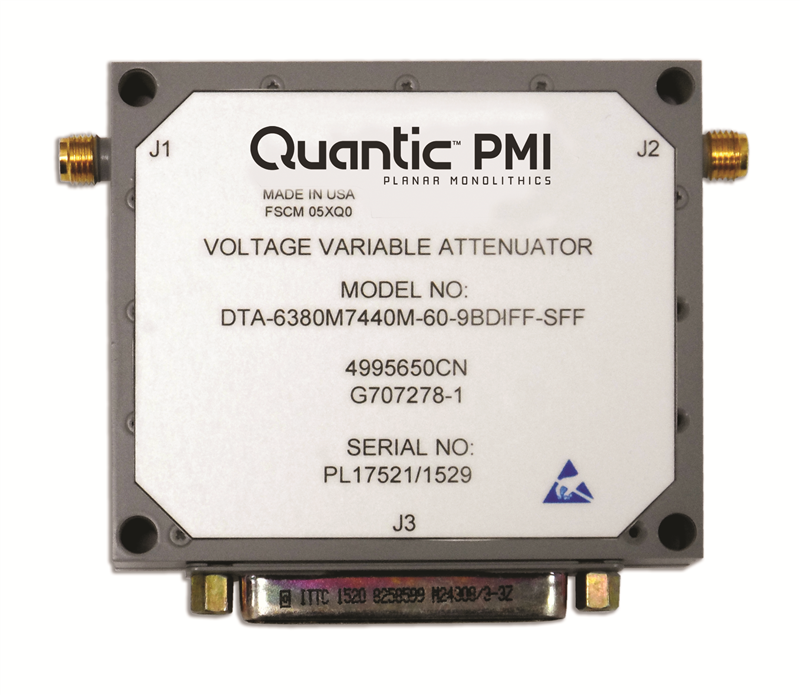

Quantic PMI Model DTA-6380M7440M-60-9BDIFF-SFF is a 6.38 to 7.44 GHz Voltage Variable Attenuator with a control interface which allows for nine differential inputs to control the attenuator settings with an LSB of 0.25 dB and a minimum attenuation of 50 dB. Package size is 2.8" x 2.15" x 0.57" with SMA female connectors.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 6.38 to 7.44
Frequency Min (GHz): 6.38
Frequency Max (GHz): 7.44
Insertion Loss (dB): 6.5 dB
Insertion Loss (dB) - Measured: 6.5 dB Max - Measured 5.2 dB
Attenuation (dB): 50 dB
Control Type: Voltage
LSB: 0.25 dB
Attenuation Flatness (dB): 0.1 dB Max over any 0.033125 GHz band within the operating frequency and at any attenuation state.
Switching Speed: The control 0 input shall apply or remove the Maximum attenuation setting within 0.8 µs. The Maximum switching rate of the control 0 input shall be 20 kHz.
VSWR: 1.5:1 Max - Measured 1.47:1
Power Supply: +5 VDC ±0.5 VDC @ 500 mA Max - Measured @ 148 mA,
+15 VDC ±1 VDC @ 150 mA Max - Measured @ 48 mA,
-15 VDC ±1 VDC @ 100 mA Max - Measured @ 0 mA
Operating Input Power: 22 dBm CW Min
Power Dissipation: 3 W Max
RF Connectors: SMA Female
DC Connector: Per Table 1 & Figure 2 of the product feature
Size: 2.8" x 2.15" x 0.57"
Weight: 16 oz Max
Export Classification (ECCN): EAR99
Environmental Ratings:
Operating Temperature: -0 ºC to +55 ºC
Non-Operating Temperature: -40 ºC to +71 ºC
