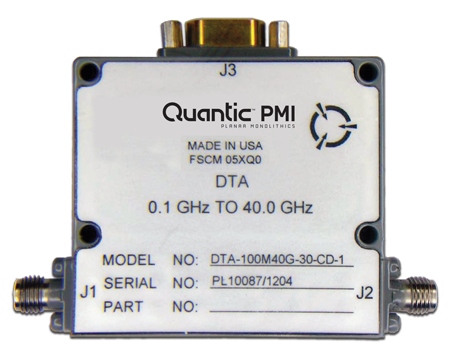

| General Parameters: |
|---|
| Status: | Active |
|---|
| Frequency Range (GHz): | 0.1 to 18 |
|---|
| Frequency Min (GHz): | 0.1 |
|---|
| Frequency Max (GHz): | 18 |
|---|
| Attenuation Range (dB): | 30 dB |
|---|
| Attenuation Step Size - LSB (dB): | 1 dB |
|---|
| Attenuation Accuracy (dB): | ±2.5 dB Typ |
|---|
| Insertion Loss (dB): | 5 dB Typ |
|---|
| Insertion Loss (Measured): | 5 dB Typ - Measured 4.74 dB |
|---|
| VSWR: | 2.5:1 Typ - Measured 1.66:1 |
|---|
| Operating Input Power: | 24 dBm CW Max |
|---|
| Input 1dB Compression: | 20 dBm Typ |
|---|
| Swiching Time (On Time): | 1 µs Max |
|---|
| Swiching Time (Off Time): | 0.5 µs Max |
|---|
| Power Supply: | +15 VDC @ 50 mA Max |
|---|
| Logic Input: | Logic "0" (BIT OFF) = -0.3 to +0.8 V
Logic "1" (BIT ON) = +2 to +5 V |
|---|
| Digital Control: | 5 BIT |
|---|
| Connectors: | RF: 2.92mm Female
Control & Power: 15 PIN Micro-D-female,
(Mating Connector Supplied) |
|---|
| Size: | 2.0" x 1.8" x 0.5" |
|---|
| Finish: | Painted Blue |
|---|
| Weight: | ~3 oz (85 g) |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -50 ºC to +85 ºC |
|---|
| Non-Operating Temperature: | -65 ºC to +125 ºC |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107 |
|---|
