| General Parameters: |
|---|
| Status: | Active |
|---|
| Output Frequency, Fo (GHz): | 9 |
|---|
| Output Power (dBm): | 13 dBm Typ |
|---|
| Spurious (dBc): | -75 dBc Max |
|---|
| Harmonics (dBc): | -25 dBc Max |
|---|
| Frequency Stability: | ±5 ppm/°C Max |
|---|
| Phase Noise @ Offset 100 KHz: | -80 dBc/Hz Typ |
|---|
| Mechanical Tuning Range: | ±20 MHz Typ |
|---|
| BIAS Voltage: | +10 VDC Min, +12 VDC Typ, +15 VDC Max |
|---|
| BIAS Current: | 40 mA Typ |
|---|
| Connectors: | RF: SMA Female
Power: RFI Solder Terminals |
|---|

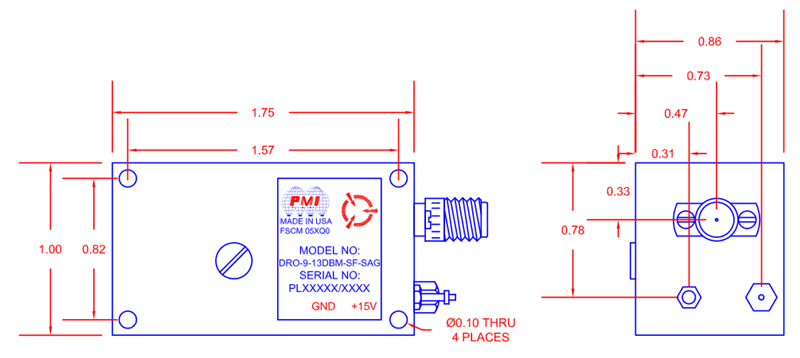

| Size: | 1.75" x 1.0" x 0.86" |
|---|
| Finish: | Painted Blue
Mounting surface nickel plated |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Temperature (Operating): | 0 °C to 50 °C |
|---|
| Humidity: | MIL-STD-202, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202, Method 107D Cond. A |
|---|
