DRO-22G-15DBM-SF
Preliminary
Dielectrically Stabilized GaAs FET Oscillator
Quantic PMI Model DRO-22G-15DBM-SF is a Dielectrically Stabilized GaAs FET Oscillator with a center frequency of 22 GHz. This model provides minimum output power of +15 dBm with all spurs held to -60 dBc. The unit requires ±15 VDC and measures 2.0" x 3.0" x 0.9"
Product Specifications
| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Output Frequency (fo): | 22.0 GHz |
|---|
| Output Power: | +19 dBm Max @ -54 to +85 °C
+15 dBm Min |
|---|
| Spurious: | -60 dBc Min @ DC to 26.0 GHz
Enhancement 20 log(fo/fi) +8 dB Typ @ <100 KHz
-107 dBc Min @ 100 KHz
-127 dBc Min @ 1000 KHz |
|---|
| DC Power: | +15 V ± 5% @ 550 mA Max
-15 V ± 5% @ 50 mA Max |
|---|

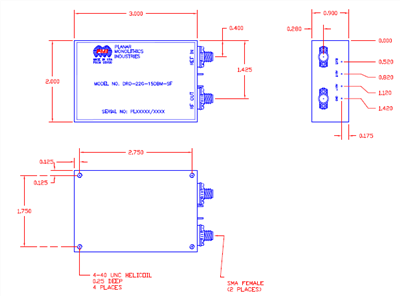

| Size: | 2.0" x 3.0" x 0.9" |
|---|
| Weight: | 8 oz |
|---|
| Power and Phase Lock Connector: | RFI Solder Pins |
|---|
| Finish: | Painted Blue |
|---|
| Connectors: | SMA (F) |
|---|
| Lock Detector: | LS-TTL Logic "1" or "0"
Lock = Logic "1" (+2.4 to +5.5 V)
Un-Lock = Logic "0" (0 to +0.8 V) |
|---|
| VSWR: | 1.5:1 Max |
|---|
| Input Frequency: | 100 MHz ± 0.01 MHz |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -54 °C to +85 °C |
|---|
| Non-Operating Temperature: | -57 °C to +85 °C |
|---|
| Vibration: | MIL-E-5400T 3.2.24.5 Figure 2 (Sheet 1 of 3) Curve III |
|---|
| Shock: | MIL-E-5400T 3.24.6.1 (15G 11 ± 1 ms (6 Directions)) |
|---|
| Humidity: | MIL-E-5400T 3.2.24.4 (100% RH) |
|---|
| Altitude: | 30,000 ft |
|---|
