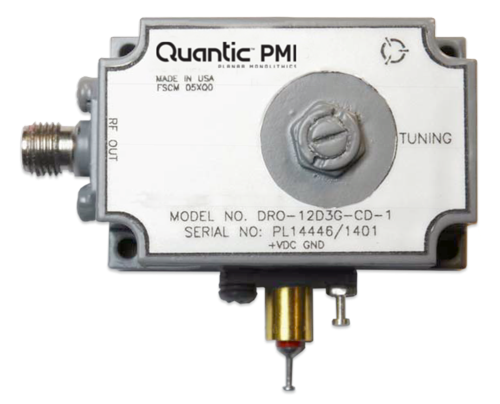

DRO-12D3G-CD-1 Active

Dielectrically stabilized GaAs FET Oscillator

DRO-12D3G-CD-1
Product Feature
Additional Documents

Quantic PMI Model DRO-12D3G-CD-1 is a Dielectrically stabilized GaAs FET Oscillator with a center frequency of 12.3 that provides minimum output power of 11 dBm with all spurs held to -55 dBc and harmonics held to -20 dBc and mechanical tuning frequency of ±25 MHz and the unit has a phase noise of -75 dBc/Hz.  The unit requires +15 VDC and 150 mA and measures 1.06" x 1.63" x 0.98" with a SMA Female connector and RFI solder terminal.

Product Specifications

General Parameters:
Status: Active
Output Frequency, Fo (GHz): 12.3
Output Power (dBm): 16 dBm Max,
11 dBm Min
Spurious (dBc): -55 dBc Min
Harmonics & Sub-Harmonics (dBc): -20 dBc Min
Mechanical Tuning Frequency: ±25 MHz
Frequency Stability: 12.3 MHz Max
Phase Noise: -75 dBc/Hz Min
Pushing: 0.1 MHz/V Max
Pulling: ±4 MHz Max @ VSWR
DC Supply: +15 VDC (±5 %) @ 150 mA Max
Connectors: RF: SMA Female
Power: RFI Solder Terminal
Size: 1.06" x 1.63" x 0.98"
Finish: Painted Gray
Export Classification (ECCN): EAR99
Environmental Ratings:
Temperature (Operating): -20 ºC to +71 ºC
Temperature (Non-Operating): -62 ºC to +85 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
