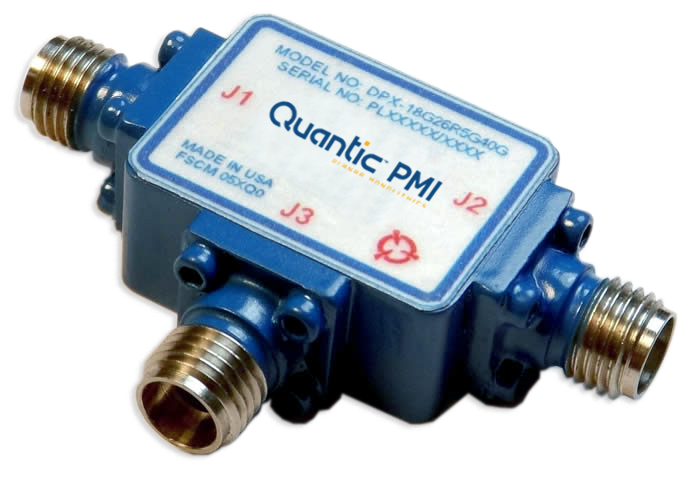

General Parameters: |
Status: | Active |
Center Frequencies, Fo: | CH 1 - 21.5 GHz CH 2 - 34.0 GHz |
Size: | 0.80" x 0.60" x 0.38" |
Low Passband: | 18.0 to 25.0 GHz |
High Passband: | 28.0 to 40.0 GHz |
VSWR(J1): | 2.5:1 Max - Measured 2.4:1 |
Insertion Loss(J1): | 2 dB Max - Measured 1.3 dB |
Diplexer K Band 1dB Passband: | 18.0 GHz, Min, 25.0 GHz Max |
Diplexer Ka Band 1dB Passband: | 28.0 GHz Min, 40.0 GHz Max |
Crossover Band: | 25.0 GHz Min, 28 GHz Max |
Crossover Excess Attenuation: | 5 dB Typ - Measured 4.8 dB |
Stopband Attenuation: | 60 dB - Measured 64 dB |
K Band (Stopband): | 32.0 GHz - 46.0 GHz |
Ka Band (Stopband): | DC - 22.0 GHz |
Weight: | 0.5 oz Typ |
Connectors: | 2.92mm (F) |
Finish: | Painted Blue |
Environmental Ratings: |
Operating Temperature: | -40 ºC to +85 ºC |
Non-Operating Temperature: | -65ºC to +125 ºC |
Humidity: | MIL-STD-202F, Method 103B Cond. B |
Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
Shock: | MIL-STD-202F, Method 213B Cond. B |
Vibration: | MIL-STD-202F, Method 204D Cond. B |
Altitude: | MIL-STD-202F, Method 105C Cond. B |
Thermal Shock: | MIL-STD-202F, Method 107D Cond. A |
