| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Center Frequencies, Fo: | CH 1 - 2.0025 GHz
CH 2- 2.185 GHz |
|---|

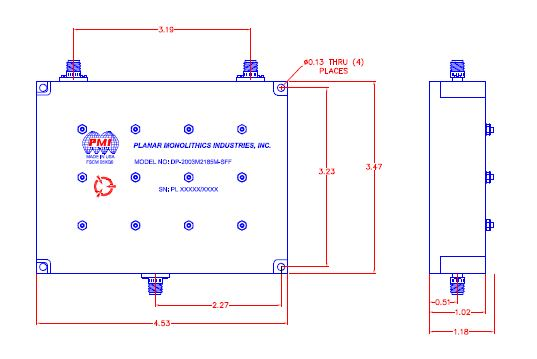

| Size: | 4.53" x 3.47" x 1.02" |
|---|
| Low Passband: | 1.98 to 2.025 GHz |
|---|
| High Passband: | 2.17 to 2.2 GHz |
|---|
| Connectors: | SMA (F) |
|---|
| Finish: | Painted Blue |
|---|
| Insertion Loss: | 0.8 dB Max |
|---|
| VSWR: | 1.5:1 Max |
|---|
| Isolation: | 80 dB Min |
|---|
| Input Power: | 50 W AVERAGE, 250 W PEAK |
|---|
| Impedance: | 50 OHMs |
|---|
| Bandwidth: | CH 1 - 1.98 TO 2.025 GHz
CH 2- 2.17 TO 2.2 GHz |
|---|
| Rejection: | CH 1 @ 2.17 to 2.2 GHz - 80 dB
CH 2 @ 1.98 to 2.025 GHz - 80 dB |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -40° C TO +70°C |
|---|
| Humidity: | MIL-STD-202F, METHOD 103B COND. N |
|---|
| Temperature Cycle: | MIL-STD-202F, METHOD 107 |
|---|
| Shock: | MIL-STD-202F, METHOD 213B COND. B |
|---|
| Vibration: | MIL-STD-202F, METHOD 204D COND. B |
|---|
| Salt Fog: | MIL-STD-202F, METHOD 1010-EST COND. B |
|---|
| Thermal Shock: | MIL-STD-202F, METHOD 107D COND. A |
|---|
