DD-50-218-12PF-2-N-SFF Preliminary

Product Feature

PMI Model No: DD-50-218-12PF-2-N-SFF is a High Speed, High Sensitivity Schottky Diode Detector requiring 50 to 100 uA bias and offering excellent temperature stability. The frequency range is 2.0 to 18.0GHz.

Product Specifications

General Parameters:
Status: Preliminary
Frequency Range: 2.0 to18.0 GHz
Frequency Min: 2 GHz
Frequency Max: 18 GHz
VSWR In/Out: 3.5:1 max
VSWR In/Out (Measured): 3.5:1 max. (measured @ -23 dBm)
Frequency Flatness: ±1.5 dB max, ±1.25 dB typ.
Bias current: 50 to 100 uA (Applied to video output)
Voltage Sensitivity: 1000 mV/mW min.
Tangential Sensitivity: -50 dBm (2 MHz video bandwidth with 2 dB noise figure video amp.)
Video Capacitance: 12.0 pF
Output Voltage: Negative is standard
Max Input Power: 100 mW
Video Resistance: 700 ohms max.
Connectors In/Out: SMA(M) Input & SMA(F) Output
Finish: Stainless Steel

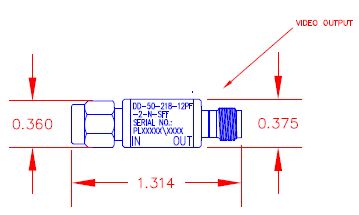

Size: 1.314 X 0.375 dia.
Environmental Ratings:
Operating Temperature: -40ºC to +55 ºC
Non-Operating Temperature: -54ºC to +85 ºC
Shock: MIL-STD--810G
Vibration: MIL-STD--810G
