| General Parameters: |
|---|
| Status: | Active |
|---|
| Frequency Range: | 18.0 to 40.0 GHz |
|---|
| Frequency Min: | 18 GHz |
|---|
| Frequency Max: | 40 GHz |
|---|
| VSWR In/Out: | 4.0:1 Typ |
|---|
| VSWR In/Out (Measured): | 4.0:1 Typ |
|---|
| Frequency Flatness: | +/- 1.75 dB |
|---|
| Temperature Flatness: | ±1.75 dB |
|---|
| Rise Time: | 5 ns Typ |
|---|
| Voltage Sensitivity: | 300 mV / mW Min |
|---|
| Tangential Sensitivity: | -45 dBm @ 2 MHz Video Bandwidth
(With 2 dB Noise Figure Amplifier) |
|---|
| Video Capacitance: | 10 pF Typ |
|---|
| Max Input Power: | 50 mW CW Max |
|---|
| Output Resistance: | 125 O Typ |
|---|
| Connectors In/Out: | 2.92 mm (M/F) |
|---|
| Finish: | Albaloy plated |
|---|

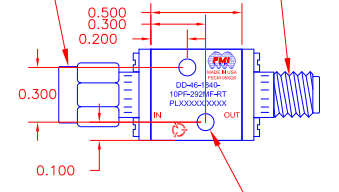

| Size: | 0.50" x 0.50" x 0.22" |
|---|
| Temperature Stability: | ±0.5 dB Typ., Over Temperature Extremes |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -55ºC to +100 ºC |
|---|
| Non-Operating Temperature: | -65ºC to +100ºC |
|---|
| Humidity: | MIL-STD-202, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202, Method 213B Cond. G |
|---|
| Vibration: | MIL-STD-202, Method 204D Cond. D |
|---|
| Altitude: | MIL-STD-202, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202, Method 107D Cond. A |
|---|
