| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Frequency Range: | 4.8 to 9.6 GHz |
|---|
| Frequency Min: | 4.8 GHz |
|---|
| Frequency Max: | 9.6 GHz |
|---|
| VSWR In/Out: | 4.0:1 max. |
|---|
| Frequency Flatness: | ±1.0 dB max. |
|---|
| Rise Time: | 50 ns max. with 200 Ohm Load |
|---|
| Voltage Sensitivity: | 200 mV/mW min., 400 mV/mW typ. with 200 Ohm Load (Note 2) |
|---|
| Tangential Sensitivity: | -45 dB min. (Note 3) |
|---|
| Video Resistance: | 80 Ohms typ. for RF Power Level Below -20 dBm |
|---|
| Connectors In/Out: | 2.92 mm (M) (SMA Male Compatible)
2.92 mm (F) (SMA Female Compatible) |
|---|
| Finish: | Passivated Stainless Steel |
|---|

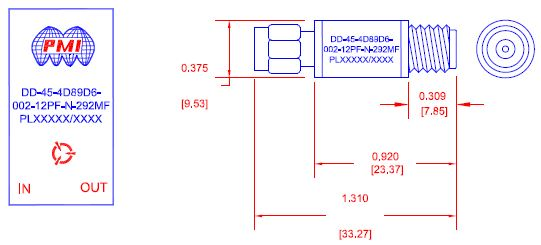

| Size: | 1.31" x ?0.375 |
|---|
| Temperature Stability: | ±1.5 dB max. Over Frequency and Temperature (-55°C to +100°C) (Note 2) |
|---|
| Output Capacitance: | +12 pF typ. |
|---|
| Output Video Polarity: | Negative |
|---|
| RF Input VSWR: | 4.0:1 max. (Note 2) |
|---|
| Maximum Input Power: | 40 mW CW |
|---|
| Bias: | No Bias |
|---|
| Sealing: | Hard Epoxy Sealed |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -54°C to +125°C |
|---|
| Non-Operating Temperature: | -62°C to +125°C |
|---|
| Humidity: | MIL-E-5400R 3.2.24.4, 100% RH |
|---|
| Shock: | MIL-E-540R 3.2.24.6.1
15G X 11 ± 1 ms, 3 Times X 6 Directions |
|---|
| Vibration: | MIL-E-5400R Fig2 Curve VIa
5 to 2000 Hz ± 0.1 inch P-P or ±20 G |
|---|
| Hermetic Sealing: | MIL-E-5400R Table 1 VII
Sea Level: 70,000 ft. |
|---|
