| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Frequency Range: | 0.03 to 0.2 GHz |
|---|
| Frequency Min: | 0.03 GHz |
|---|
| Frequency Max: | 0.2 GHz |
|---|
| Voltage Sensitivity: | 700 mV/mW min. |
|---|
| Connectors In/Out: | 2.92 mm (M)/2.92 mm (F) |
|---|
| Finish: | Nickel |
|---|

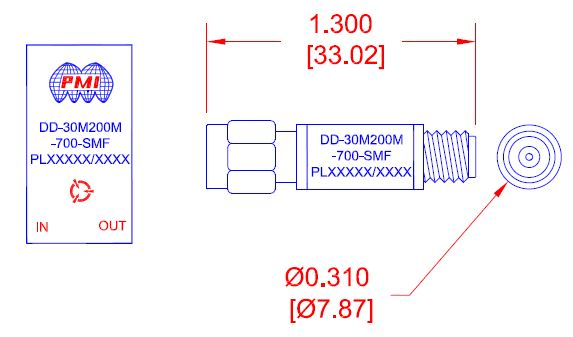

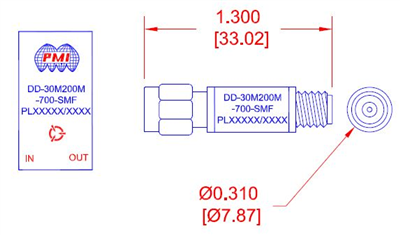

| Size: | 1.30" x ø0.31" |
|---|
| Output Polarity: | Negative |
|---|
| Input Power: | 50 mW CW max. |
|---|
| Impedance: | 50 Ohms typ. |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -45°C to +85°C |
|---|
| Non-Operating Temperature: | -55°C to +95°C |
|---|
| Humidity: | MIL-STD-202, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202, Method 213B Cond. G (50 g, 11 ms) |
|---|
| Vibration: | MIL-STD-202, Method 204D Cond. D (20 g, 10-2000 MHz) |
|---|
| Altitude: | MIL-STD-202, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202, Method 107D Cond. A |
|---|
