DD-24-SMF Active

Diode Detector

Product Feature

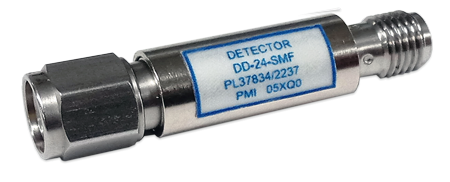

Quantic PMI Model DD-24-SMF is a high speed, high sensitivity diode detector requiring no bias and offering excellent temperature stability with a response time of less than 5 ns. The frequency range is 2 to 4 GHz and offers a VSWR of 2.5:1, a frequency flatness of ±0.5 dB, a Video output capacitance of 50 pF, and a maximum input power of +20 dBm. The housing measures 1.43" x 0.32" x 0.38" and has SMA male/female connectors.

Product Specifications

General Parameters:
Status: Active
Frequency Range: 2.0 to 4.0 GHz
Frequency Min: 2.0 GHz
Frequency Max: 4.0 GHz
VSWR In/Out: 2.5:1 Max
VSWR In/Out (Measured): -23 dBm
Frequency Flatness: ±0.5 dB
Rise Time: 5 ns
Voltage Sensitivity: 1000 mV/mW
Tangential Sensitivity: -50 dBm @ 2 MHz Video Bandwith
(with 2 dB Noise Figure Amplifier)
Video Capacitance: 50 pF Nom
Output Voltage: Positive
Max Input Power: +20 dBm
Connectors In/Out: RF Input: SMA (M)
Video Output: SMA (F)
Finish: Nickle Plated
Size: 1.43" x 0.32" x 0.38"
Environmental Ratings:
Operating Temperature: -54 °C to +85 °C
Non-Operating Temperature: -65 °C to +100 °C
Humidity: MIL-STD-202, METHOD 106.
Shock: MIL-STD-202, METHOD 213, TEST CONDITION A
Vibration: MIL-STD-202, METHOD 204, TEST CONDITION A.
Altitude: MIL-STD-202, METHOD 105, TEST CONDITION 40,000 FEET (Non-Op)
MIL-STD-202, METHOD 105, TEST CONDITION 8,000 FEET. (Operating)
