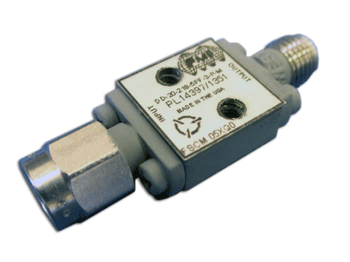

| General Parameters: |
|---|
| Status: | Active |
|---|
| Frequency Range: | 2 to 18 GHz |
|---|
| Frequency Min: | 2 GHz |
|---|
| Frequency Max: | 18 GHz |
|---|
| VSWR In/Out: | 3.5:1 Max |
|---|
| VSWR In/Out (Measured): | 3.5:1 Max (Measured at Pin = -23 dBm) Measured 2.444:1 |
|---|
| Frequency Flatness: | ±1.0 dB - Measured ±0.655 dB |
|---|
| Rise Time: | 10 ns Typ - Measured 4.632 ns |
|---|
| Voltage Sensitivity: | 500 mV / mW Typ - Measured 770 mV/mW |
|---|
| Tangential Sensitivity: | -50 dBm @ 2 MHz Video Bandwidth
(With 2 dB Noise Figure Amplifier) |
|---|
| Video Capacitance: | 5.6 pF Typ |
|---|
| Output Voltage: | Positive (Negative Available Upon Request) |
|---|
| Max Input Power: | +20 dBm CW |
|---|
| Connectors In/Out: | Input: SMA Male
Output: SMA Female |
|---|
| Finish: | Mil-SPEC Epoxy Paint, Gray |
|---|
| Size: | 0.5" x 0.5" x 0.22" |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -55 ºC to +85 ºC |
|---|
| Non-Operating Temperature: | -65 ºC to +100 ºC |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
|---|
