| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Frequency Range: | 10 to 20 GHz |
|---|
| Frequency Min: | 10 GHz |
|---|
| Frequency Max: | 20 GHz |
|---|
| VSWR In/Out: | 2.5:1 Max (MEASURED @-23 dBm) |
|---|
| Frequency Flatness: | ±1.0 dB |
|---|
| Rise Time: | 10 ns Typ |
|---|
| Voltage Sensitivity: | 500 mV/mW |
|---|
| Tangential Sensitivity: | -50 dBm @2 MHz VIDEO BANDWIDTH (WITH 2 dB NOISE FIGURE AMPLIFIER) |
|---|
| Video Capacitance: | 5.6 pF Typ |
|---|
| Output Voltage: | POSITIVE IS STANDARD (NEGATIVE IS AVAILABLE) |
|---|
| Max Input Power: | +20 dBm (-20 dBm Min) |
|---|
| Connectors In/Out: | SMA (M) INPUT & SMA (F) OUTPUT |
|---|
| Finish: | PAINTED BLUE |
|---|

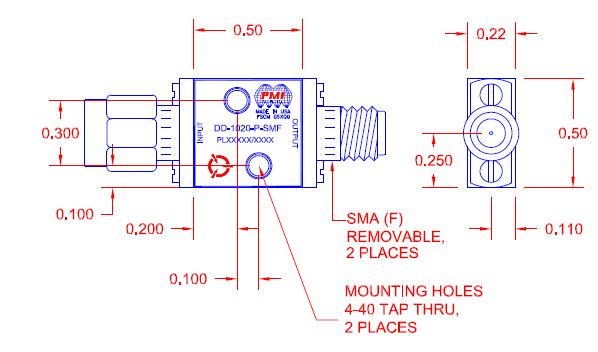

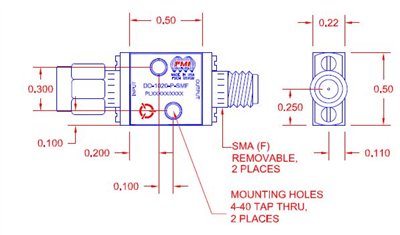

| Size: | (L) 0.50" x (W) 0.50" x (H) x 0.22" |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -54°C TO +85°C (OPERATING) |
|---|
| Non-Operating Temperature: | -65°C TO +100°C (STORAGE) |
|---|
| Humidity: | MIL-STD-202F, METHOD 103B COND. B |
|---|
| Shock: | MIL-STD-202F, METHOD 213B COND. B |
|---|
| Vibration: | MIL-STD-202F, METHOD 204D COND. B |
|---|
| Altitude: | MIL-STD-202F, METHOD 105C COND. B |
|---|
| Temperature Cycle: | MIL-STD-202F, METHOD 107D COND. A |
|---|
