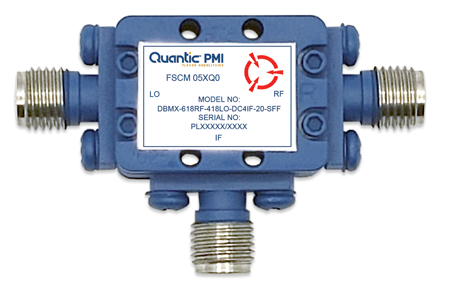

| General Parameters: |
|---|
| Status: | Active |
|---|
| Frequency Range: | 6 to 26.5 GHz |
|---|
| Frequency Min: | 6 GHz |
|---|
| Frequency Max: | 26.5 GHz |
|---|
| Connectors: | SMA (F) |
|---|
| Size (Excluding Connectors): | 0.56" x 0.552" x 0.39" |
|---|
| Conversion Loss: | LO: 6 to 26.5 GHz,
RF: 6 to 26.5 GHz:
Config A: 7.5 dB Typ.
Config B: 9 dB Typ. |
|---|
| Isolation (Low to RF): | LO: 6 to 26.5 GHz,
RF: 6 to 26.5 GHz: 47 dB Typ |
|---|
| Isolation (Low to IF): | LO: 6 to 26.5 GHz,
RF: 6 to 26.5 GHz: 34 dB Typ |
|---|
| Isolation (RF to IF): | LO: 6 to 26.5 GHz,
RF: 6 to 26.5 GHz: 35 dB Typ |
|---|
| Input 1 dB Compression Point: | LO: 6 to 26.5 GHz,
RF: 6 to 26.5 GHz: +9 dBm Typ |
|---|
| Input Third Order Intercept Point: | LO: 6 to 26.5 GHz,
RF: 6 to 26.5 GHz:
Config A: +21 dBm Typ
Config B: +23 dBm Typ |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Temperature (Operating): | -55 °C to +100 °C |
|---|
| Vibration: | MIL-STD-202, Method 204D Cond. B |
|---|
| Shock: | MIL-STD-202, Method 213B Cond. B |
|---|
| Altitude: | MIL-STD-202, Method 105C Cond. B |
|---|
| Humidity: | MIL-STD-202, Method 103B Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202, Method 107D Cond. A |
|---|
