CIR-1G1G1M-22-NFF Preliminary

Circulator

CIR-1G1G1M-22-NFF
Product Feature

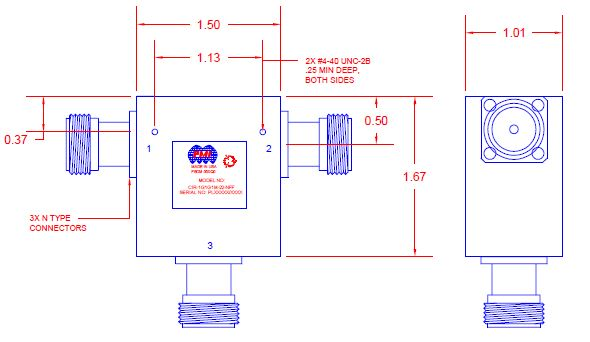

Quantic PMI Model CIR-1G1G1M-22-NFF is a circulator that operates over the frequency range of 1 to 1.1 GHz with an isolation of 22 dB. Package size is 1.5" x 1.67" x 1.01" and is outfitted with N type female connectors.

Product Specifications

General Parameters:
Status: Preliminary
Frequency Range (GHz): 1 to 1.1
Frequency Min (GHz): 1
Frequency Max (GHz): 1.1
Isolation (GHz): 22 dB Min
VSWR: 1.25:1 Max
Connectors: N Type Female
Size: 1.5" x 1.67" x 1.01"
Export Classification (ECCN): EAR99
Environmental Ratings:
Temperature: -20 °C to +65 °C
Humidity: MIL-STD-202, METHOD 103B COND. B
Shock: MIL-STD-202, METHOD 213B COND. B
Vibration: MIL-STD-202, METHOD 204D COND. B
Altitude: MIL-STD-202, METHOD 105C COND. B
Temperature Cycle: MIL-STD-202, METHOD 107D COND. A
