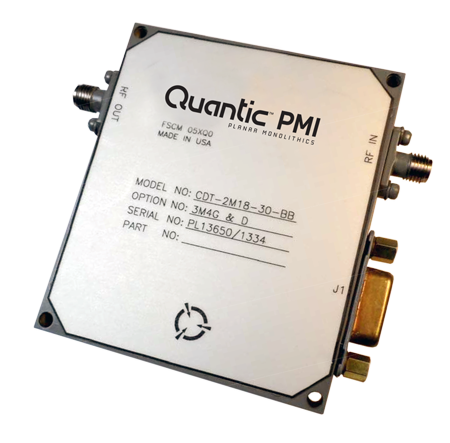

General Parameters: |
Status: | Active |
Frequency Min: | 0.002 GHz |
Frequency Max: | 18 GHz |
Threshold: | Adjustable |
Detected Output Type: | TTL |
Size: | 2.50" x 2.90" x 0.50" |
VSWR: | 1.9:1 |
Insertion Loss: | 2.5 dB Max |
Finish: | Painted Gray |
Power Supply: | +15 V @100 mA Max -15 @ 40 mA Max |
Power Range: | Operational: -30 to 0 dBm (10 kHz, Video Bandwidth) |
Output Polarity: | Positive |
RF Connectors: | SMA (F) |
RF Damage Level: | 28 dBm Min |
Threshold Level: | 0 to 2.5 VDC |
Switching Time: | 5 µs Max |
Connector Multi-Pin: | 9 Pin D Multipin Connector (Female) |
Environmental Ratings: |
Operating Temperature: | 0 ºC to +60 ºC |
Non-Operating Temperature: | -65 ºC to +125 ºC |
Humidity: | MIL-STD-202F, Method 103B Cond. B |
Shock: | MIL-STD-202F, Method 213B Cond. B |
Vibration: | MIL-STD-202F, Method 204D Cond. B |
Altitude: | MIL-STD-202F, Method 105C Cond. B |
Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
