BR6000-100-CD-SS Active

Band Reject Filter

Product Feature

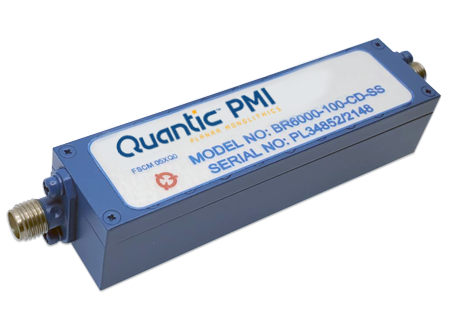

Quantic PMI Model BR6000-100-CD-SS is a Band Reject Filter with center frequency of 6 GHz and notch bandwidth of 0.1 GHz @ 3 dB, with a VSWR of 2.0:1. Precision machined housing and silver plated to provide the highest possible Q.  Package size is 2.90" x 0.65" x 0.75" with SMA female connectors.

Product Specifications

General Parameters:
Status: Active
Center Frequency, Fo (GHz): 6
Notch Bandwidth (GHz): 0.1 (5.95 to 6.05)
Passband Insertion Loss (dB): 1 dB Max
Notch Depth: -30 dB Min
Passband Frequency (GHz): DC to 5.85 / 6.2 to 6.8
Passband VSWR: 1.5:1 Max
RF Input Power: 100 W CW
Rejection @ ±0.09 GHz: -30 dB
Rejection from 0 to 0.3 GHz: -65 dB
Rejection from 0.3 to 1 GHz: -65 dB
Connectors In/Out: SMA Female
Size: 2.90" x 0.65" x 0.75"
Weight: 1 oz
Environmental Ratings:
Temperature: -55 °C to +85 °C (Operating)
Non-Operating: -65 °C to +125 °C (Storge)
Humidity: MIL-STD-202F, METHOD 103B COND. B
Shock: MIL-STD-202F, METHOD 213B COND. B
Vibration: MIL-STD-202F, METHOD 204D COND. B
Altitude: MIL-STDB-202F, METHOD 105B COND. B
Temperature Cycle: MIL-STD-202F, METHOD 107
Salt Fog: MIL-STD-202F, METHOD 107B COND. A
