| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Frequency Range: | 0.5 to 2.0 GHz |
|---|
| Frequency Min: | 0.5 GHz |
|---|
| Frequency Max: | 2.0 GHz |
|---|
| Phase States: | 0 DEGREES/ 180 DEGREES +/- 10° Max |
|---|
| Insertion Loss: | 2.5 dB Typ, 3.0dB Max |
|---|
| VSWR: | 2.0:1 Max / 1.5:1 Goal |
|---|
| Control Type: | TTL |
|---|
| Amplitude Balance: | 1 dB Max |
|---|
| Input Power: | +20 dBm OPERATING CW, 0.5W @ 1 us PULSE WIDTH SURVIVAL |
|---|
| Carrier Suppression: | 15/20 dB TYPICAL |
|---|
| Control: | TTL |
|---|
| Power Supply: | +5 vdc @ 75mA Max
-5 vdc @ 20mA Max |
|---|

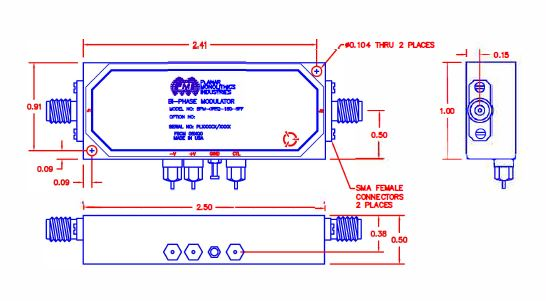

| Size: | 2.50" x 1.00" x 0.50" |
|---|
| Weight: | =2.0 OZ |
|---|
| Finish: | Painted Blue |
|---|
| Switching Speed: | RISE: 10 ns Max
FALL: 10 ns Max |
|---|
| Environmental Ratings: |
|---|
| Temperature (Operating): | -40° C to +85° C |
|---|
| Temperature (Storage): | -40° C to +100° C |
|---|
| Humidity: | MIL-STD-202F, METHOD 1038 COND. B |
|---|
| Shock: | MIL-STD-202F, METHOD 2138 COND. B |
|---|
| Vibration: | MIL-STD-202F, METHOD 204D COND. B |
|---|
| Altitude: | MIL-STD-202F, METHOD 105C COND. B |
|---|
| Temperature Cycle: | MIL-STD-202F, METHOD 107D COND. A |
|---|
