| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Frequency Range: | 26.7 TO 26.9 GHz |
|---|
| Frequency Min: | 26.7 GHz |
|---|
| Frequency Max: | 26.9 GHz |
|---|
| Phase States: | 0° / 180° |
|---|
| Insertion Loss: | 5 dB Typ |
|---|
| VSWR: | 2.0:1 GOAL
3.0:1 MAX |
|---|
| Control Type: | TTL |
|---|
| Impedance: | 50 Ohms |
|---|
| Amplitude Balance: | ±1.0 dB Typ |
|---|
| RF Connectors: | 2.92 mm Female |
|---|
| Phase Shift Control Input: | TTL "0" = 0"
TTL"1" = 180° |
|---|
| Power Supply: | +5 VDC @ 75 mA Max
-5 VDC @ 20 mA Max |
|---|

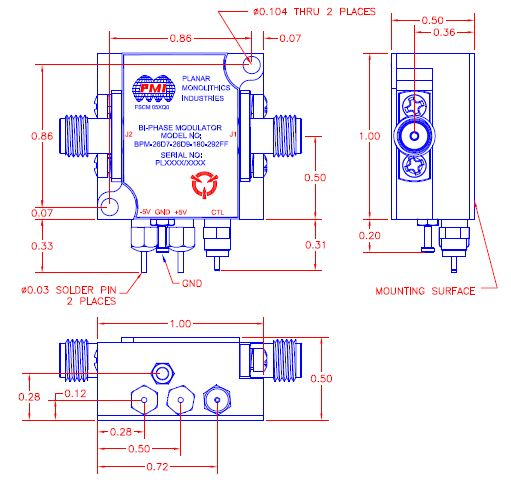

| Size: | 1.0" x 1.0" x 0.5" |
|---|
| Finish: | Painted Blue |
|---|
| Switching Speed: | 100 ns Max |
|---|
| Phase Variation: | ±10° Typ |
|---|
| Power Handling: | 20 dBm Opearational |
|---|
| Environmental Ratings: |
|---|
| Temperature (Operating): | -55 °C TO +85 °C |
|---|
| Temperature (Storage): | -65 °C TO + 125 °C |
|---|
| Humidity: | UP TO 90%, NON-CONDENSING |
|---|
| Shock: | MIL-STD-202, METHOD 2 13B COND. B |
|---|
| Vibration: | MIL-STD-202, METHOD 204D COND. B |
|---|
| Altitude: | MIL-STD-202, METHOD 105C COND. B |
|---|
| Temperature Cycle: | MIL-STD-202, METHOD 1070 COND. A |
|---|
