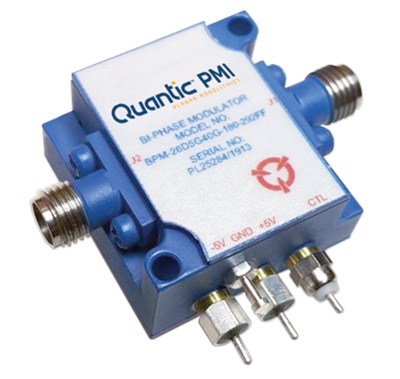

| General Parameters: |
|---|
| Status: | Active |
|---|
| Frequency Range (GHz): | 26.5 to 40 |
|---|
| Frequency Min (GHz): | 26.5 |
|---|
| Frequency Max (GHz): | 40 |
|---|
| Insertion Loss (dB): | 5.5 dB Typ |
|---|
| Phase States: | 0° / 180º |
|---|
| VSWR: | 2.0:1 Max, 1.5:1 goal |
|---|
| Control Type: | TTL |
|---|
| Phase Shift: | ±30° Typ |
|---|
| Impedance: | 50 Ohm |
|---|
| Amplitude Balance: | ±2 dB Typ |
|---|
| Control Input: | TTL "0" = 0°
TTL "1" = 180° |
|---|
| Speed: | 100 ns Max |
|---|
| Power Supply: | +5 VDC @ 70 mA Max,
-12 VDC @ 30 mA Max |
|---|
| RF Connectors: | 2.92mm Female |
|---|
| Size: | 2.25" x 1.60" x 0.60" |
|---|
| Finish: | Gold Plated |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Temperature (Operating): | -55 ºC to +85 ºC |
|---|
| Temperature (Storage): | -65 ºC to +125 ºC |
|---|
| Humidity: | Up to 90%, Non-Condensing |
|---|
| Shock: | MIL-STD-202, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202, Method 107D Cond. A |
|---|
