APT3-03100350-0807-D5S Active

Low Noise Amplifier

Buy Now
APT3-03100350-0807-D5S
Product Feature

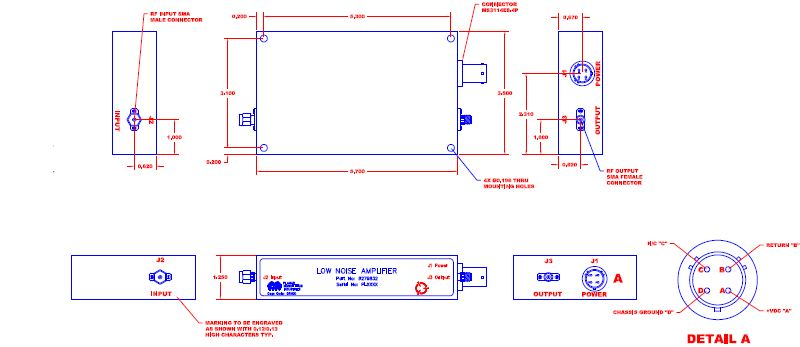

Quantic PMI Model APT3-03100350-0807-D5S is an ultra low noise amplifier that operates over the 3.1 to 3.5 GHz frequency range with noise figure is 0.8 dB and offers a maximum VSWR of 1.35:1 at the input and output. These amplifiers are phase matched to within ±8° and are phase tracked to within 4°. Package size is 8.7" x3.5" x 1.25" with SMA male / female connectors.

Product Specifications

General Parameters:
Status: Active
Frequency Min (GHz): 3.1
Frequency Max (GHz): 3.5
Gain (dB): 28 ± 0.6 dB
Gain Flatness (dB): ±0.2 dB (Over any 0.04 GHz Segment)
Noise Figure (dB): 0.8 dB Max
VSWR In/Out: 1.35:1 Max
OP1dB (dBm): 7.6 dBm Min
DC Voltage: +15 VDC
DC Current Draw: 150 mA Nom
Impedance: 50 Ohms
DC Supply: +15 VDC
DC Current: 150 mA
Phase Matching: The difference in insertion phase from the phase versus frequency characteristics shall not exceed ±8° for input signals up to -25 dBm
Phase Tracking: Over 40 MHz segments of the RF band the insertion phase shall track the phase versus frequency characteristics within 4° for input levels up to -25 dBm
Connectors: SMA Male / Female
Export Classification (ECCN): EAR99
Environmental Ratings:
Temperature (Operating): 0 °C to +45 °C
Temperature (Non-Operating): -62 °C to +75 °C
Humidity: 0 to 95% RH
Shock: 50G, 11 ms sawtooth-pulse, any direction
Vibration: No resonance between 5 to 25 Hz. Capable of withstanding continuous vibration of 1.3 g's at 25 Hz for a period not less than 2 hours in any direction, without degradation.
