AMP-218-13-16-12-SFF Active

Low Noise Amplifier

Product Feature
Additional Documents

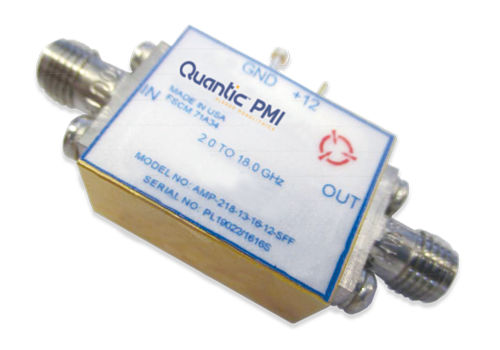

Quantic PMI Model AMP-218-13-16-12-SFF is a 2 to 18 GHz amplifier with a nominal gain of 13 dB, 16 dBm compression point, and a noise figure of 4 dB maximum. Housing measures 0.9" x 0.7" x 0.5" with SMA female connectors.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 2 to 18
Frequency Min (GHz): 2
Frequency Max (GHz): 18
Gain (dB): 13 ± 2 dB
Gain (Measured): 13 ± 2 dB @ 25 ºC - Measured 13.5 dB
Gain Flatness: ±1 dB Max - Measured ±0.71 dB
Noise Figure (dB): 4 to 5 dB
Noise Figure (Measured): 4 dB Max @ 25 ºC - Measured 3.9 dB,
5 dB Max @ 70 ºC - Measured 4.6 dB
OP1dB (dBm): 16 dBm Min
VSWR In/Out: Input 2.5:1 Max - Measured 1.44:1,
Output 2.3:1 Max - Measured 1.76:1
DC Voltage (VDC): +12 @ 200 mA Max - Measured 198 mA
DC Current (mA): 200 mA
Input Power: 20 dBm Min
1 dB Gain Compression Point: 16 dBm Min. - Measured 16.4 dBm
Power Supply Variations: ±0.5 V
RF Leakage Levels: -60 dBm
Connectors: SMA Female - removable
Size: 0.9" x 0.7" x 0.5"
Environmental Ratings:
Temperature: -10º C to +70º C Operating,
-54º C to +85º C Non-Operating
Humidity: 100% relative humidity +30º C to +55º C with condensation, 240 hr. exposure.
Altitude: Sea Level to 40, 000 ft. ASL Non-Operating, Sea Level to 15, 000 ft. ASL Operating
