AGTM-2000-90 Active

Ultra-Low Video Transient High Speed Voltage Variable, Matched, Attenuator/Modulator

AGTM-2000-90
Product Feature

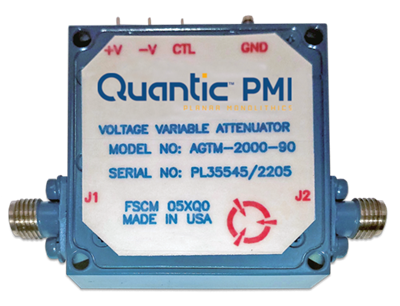

Quantic PMI Model AGTM-2000-90 is a DC to 2.4 GHz, Ultra Low Video Transient High Speed Voltage Variable, Matched, MMIC Attenuator/Modulator that features Very High Isolation/Attenuation (104 dB Typical from 0.01 to 0.5 GHz) with High Speed (26 to 30 ns Typically) and Very Low Video Transients (<20 mV P-P in a 0.3 GHz Bandwidth). Package size is 1.50" x 1.50" x 0.40" with SMA female connectors.

Product Specifications

General Parameters:
Status: Active
Frequency Min (GHz): DC
Frequency Max (GHz): 2.4
Insertion Loss (dB): 5.25 dB Max (-40 to +85 °C)
Attenuation (dB): 75 dB Typ
Control Type: Voltage
Dynamic Range (dB): 100 dB
VSWR: 3.2.0:1 Max (Over all control voltages)
Rise and Fall Time: 20 ns Max
RF Connectors: SMA Female
Size: 1.50" x 1.50" x 0.40"
Weight: <2 oz
Export Classification (ECCN): EAR99
Environmental Ratings:
Operating Temperature: -40 °C to 85 °C
Non-Operating Temperature: -65 °C to 125 °C
Humidity: MIL-STD-202F, Method 103B Cond B
Shock: MIL-STD-202F, Method 213B Cond B
Vibration: MIL-STD-202F, Method 204D Cond B
Altitude: MIL-STD-202F, Method 105C Cond B
Temperature Cycle: MIL-STD-202F, Method 107D Cond A
