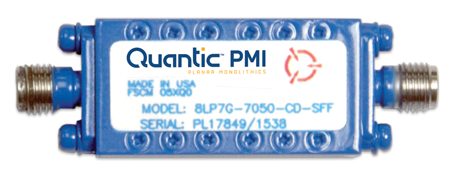

| General Parameters: |
|---|
| Status: | Active |
|---|
| Passband: | DC to 7000 MHz |
|---|
| Cut-Off Frequency: | 7000 MHz |
|---|
| Passband Insertion Loss: | 1 dB Max - Measured 0.7 dB |
|---|
| Input Power: | 20 W Max |
|---|
| Rejection @ 140 MHz: | 40 dB @ 9.0 GHz - Measured 44 dB
65 dB @ 13.562 GHz - Measured 92 dB |
|---|
| Passband VSWR: | 2.0:1 Max, 1.5:1 goal, Measured 1.4:1 |
|---|
| Connectors In/Out: | SMA (F) |
|---|
| Size: | 1.10" x 0.30" x 0.66" |
|---|
| Weight: | 1 oz Typ |
|---|
| Finish: | Painted Blue |
|---|
| Environmental Ratings: |
|---|
| Temperature: | -55 °C to 85 °C |
|---|
| Non-Operating: | -65 °C to 125 °C |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Salt Fog: | MIL-STD-202F, Method 107D Cond. A |
|---|
| Fungus: | MIL-STD-202F, Method 508.2 |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107 |
|---|
