General Parameters: |
Status: | Preliminary |
Passband: | DC to 4190 MHz |
Cut-Off Frequency: | 4190 MHz |
Passband Insertion Loss: | -1.5 dB TYP. |
Rejection @ 140 MHz: | 5 POLE RESPONSE, 40 dB @ 5700 MHz, 30 dB @ 9200 MHz |
Passband VSWR: | 1.5:1 |
Connectors In/Out: | SMA(F) |

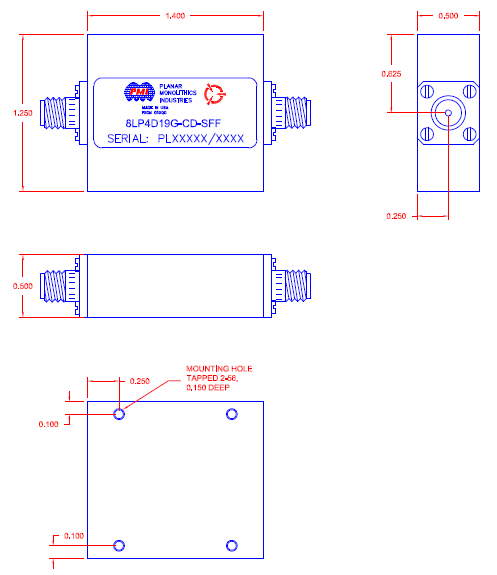

Size: | 1.40" x 1.25" x 0.50" |
Finish: | Painted Blue |
Environmental Ratings: |
Temperature: | -55 to 85 Degree C |
Non-Operating: | -65 to 125 Degree C |
Humidity: | MIL-STD-202F, Method 103B Cond. B |
Shock: | MIL-STD-202F, Method 213B Cond. B |
Vibration: | MIL-STD-202F, Method 204D Cond. B |
Altitude: | MIL-STD-202F, Method 105C Cond. B |
Salt Fog: | MIL-STD-202F, Method 107D Cond. A |
Fungus: | MIL-STD-801C, Method 508.2 |
Temperature Cycle: | MIL-STD-202F, Method 107 |
