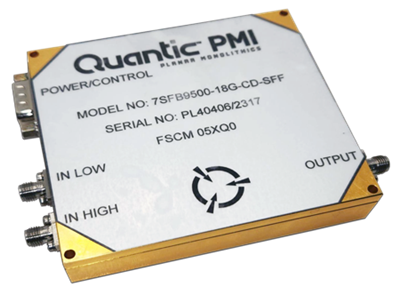

Quantic PMI Model 7SFB9500-18G-CD-SFF is a seven-channel switch filter bank. This model has seven filter channels that cover the frequency range of 0.5 to 18.5 GHz and offers fast switching speeds of less than 500 ns with an insertion loss of 6.5 dB and amplitude ripple of 1.7 dB. This model includes an internal TTL driver, SMA female connectors and a housing size 0.80" x 3.50" x 0.61".
| Channel 1 Specifications: | |
| Channel 1 Passband | 0.5 to 0.85 GHz |
| Cannel 1 Rejection | 6 Pole Response |
| Channel 2 Specifications: | |
| Channel 2 Passband | 0.7 to 1.30 GHz |
| Channel 2 Rejection | 6 Pole Response |
| Channel 3 Specifications: | |
| Channel 3 Passband | 1.20 to 2.0 GHz |
| Channel 3 Rejection | 6 Pole Response |
| Channel 4 Specifications: | |
| Channel 4 Passband | 2.0 to 3.5 GHz |
| Channel 4 Rejection | 6 Pole Response |
| Channel 5 Specifications: | |
| Channel 5 Passband | 3.4 to 6.0 GHz |
| Channel 5 Rejection | 6 Pole Response |
| Channel 6 Specifications: | |
| Channel 6 Passband | 5.9 to 10.4 GHz |
| Channel 6 Rejection | 6 Pole Response |
| Channel 7 Specifications: | |
| Channel 7 Passband | 10.3 to 18.5 GHz |
| Channel 7 Rejection | 6 Pole Response |
