| General Parameters: |
|---|
| Status: | Active |
|---|
| Passband: | DC to 6000 MHz |
|---|
| 3dB Bandwidth: | 6175 MHz |
|---|
| Cut-Off Frequency: | 6000 MHz |
|---|
| Passband Insertion Loss: | .7dB |
|---|
| Rejection @ 140 MHz: | 70dB min @ 7.0GHz, 60dB min @ 9.0 to 20.0GHz |
|---|
| Passband VSWR: | 1.5:1 |
|---|
| Connectors In/Out: | SMA(F) |
|---|

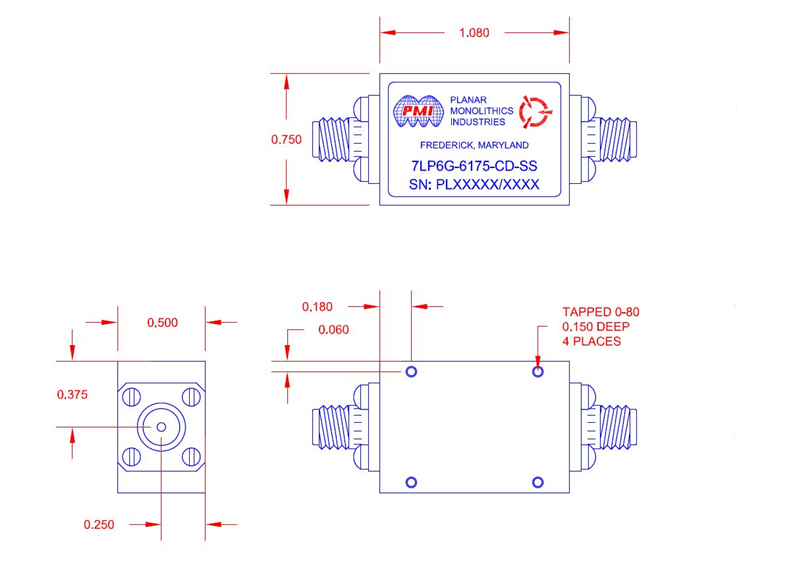

| Size: | 1.08" x 0.50" x 0.75" |
|---|
| Environmental Ratings: |
|---|
| Temperature: | -55 to 85 Degree C |
|---|
| Non-Operating: | -65 to 125 Degree C |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Salt Fog: | MIL-STD-202F, Method 107D Cond. A |
|---|
| Fungus: | MIL-STD-202F, Method 508.2 |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107 |
|---|
