| General Parameters: |
|---|
| Status: | Active |
|---|
| Passband: | DC to 1 MHz |
|---|
| Cut-Off Frequency: | 1 MHz |
|---|
| Passband Insertion Loss: | 0.5dB |
|---|
| Input Power: | 5W |
|---|
| Rejection: | -45dBc @ 200 to 2000 MHz |
|---|
| Passband VSWR: | 1.5:1 |
|---|
| Connectors In/Out: | SMA Radial Plug, SMA(M/RF Pin) |
|---|

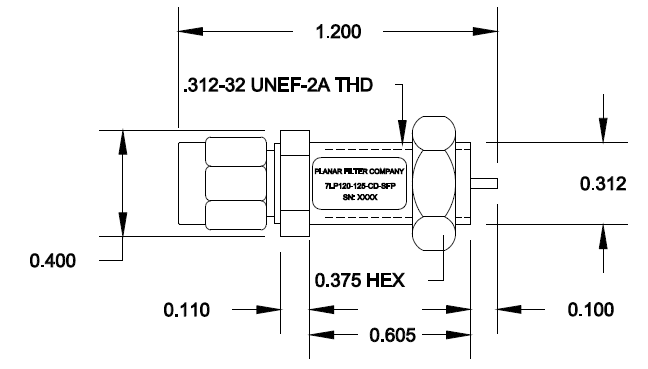

| Size: | 0.605" x 0.312" |
|---|
| Environmental Ratings: |
|---|
| Temperature: | -40 to +85 Degree C |
|---|
| Non-Operating: | -40 to +100 Degree C |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
|---|
