| General Parameters: |
|---|
| Status: | Active |
|---|
| Center Frequency (GHz): | 9.66 |
|---|
| Bandwidth (GHz): | 0.96 Min |
|---|
| 3 dB Bandwidth: | 0.96 Min |
|---|
| Insertion Loss (dB): | 5 dB Max |
|---|
| Rejection: | -70 dB @ DC to 7.8 GHz,
-70 dB @ 11.94 GHz,
-70 dB @ 13.75 GHz,
-50 dB @ 8.35 GHz,
-50 dB @ 14.5 to 17 GHz |
|---|
| VSWR: | 1.5:1 Max - Measured 1.41:1 |
|---|
| Connectors: | SMA Female |
|---|

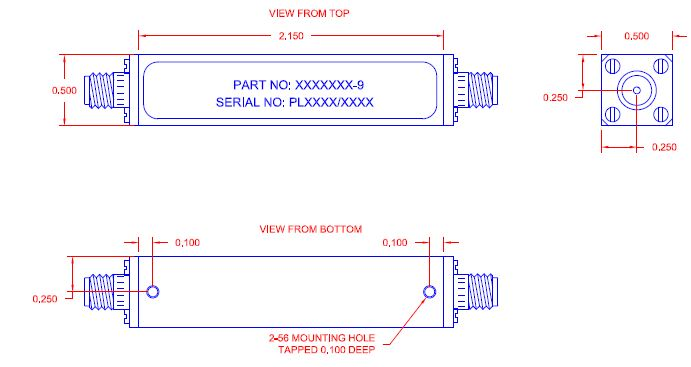

| Size: | 2.15" x 0.5" x 0.5" |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Temperature: | -55 ºC to +85 ºC Operating,
-65 ºC to +125 ºC Non-Operating |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107 |
|---|
| Salt Fog: | MIL-STD-202F, Method 107D Cond A |
|---|
| Fungus: | MIL-STD-810C, Method 508.2 |
|---|
