| General Parameters: |
|---|
| Status: | Active |
|---|
| Center Frequency (GHz): | 7.86 |
|---|
| Bandwidth (GHz): | 0.96 |
|---|
| Insertion Loss (dB): | 5 dB |
|---|
| Rejection: | 70 dB @ DC to 6 GHz,
70 dB @ 10.14 GHz,
70 dB @ 11.94 GHz,
50 dB @ 6.54 GHz,
50 dB @ 12.5 to 16 GHz |
|---|
| VSWR: | 2.0:1 Max |
|---|
| Connectors: | SMA Female |
|---|

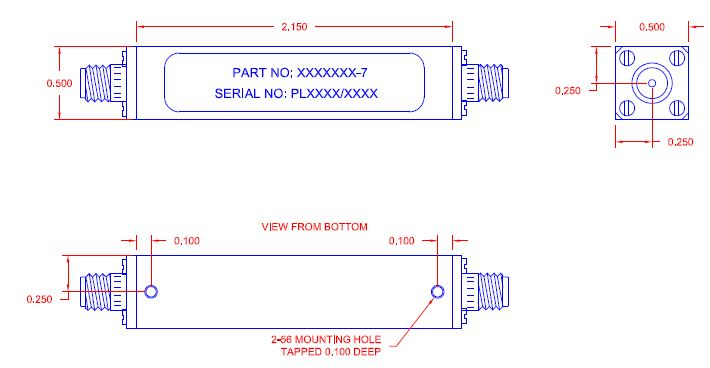

| Size: | 2.15" x 0.5" 0.5 |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Temperature: | -55 ºC to +85 ºC Operating,
-65 ºC to +125 ºC Non-Operating |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107 |
|---|
| Salt Fog: | MIL-STD-202F, Method 107D Cond A |
|---|
| Fungus: | MIL-STD-810C, Method 508.2 |
|---|
