| General Parameters: |
|---|
| Status: | Active |
|---|
| Center Frequency (GHz): | 1.3 |
|---|
| Bandwidth (GHz): | 0.1 @ 1 dB |
|---|
| Insertion Loss (dB): | 1 dB P-P Max |
|---|
| Insertion Loss Variation Over Operating Temperature: | 1 dB Max |
|---|
| Rejection: | 65 dBc Min @ DC to 1.07 GHz,
40 dBc Min @ 1.16 GHz,
40 dBc Min @ 1.46 GHz,
65 dBc Min @ 1.58 to 2.23 GHz |
|---|
| VSWR: | 1.5:1 Max |
|---|
| Connectors: | SMA Female / Male |
|---|

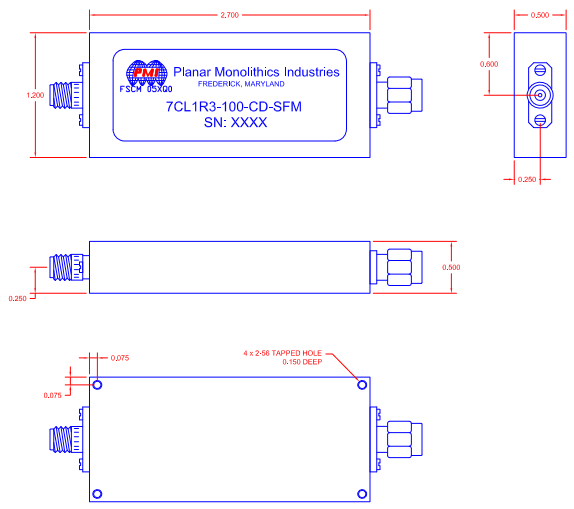

| Size: | 2.70" x 1.20" x 0.50" |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Temperature: | -20 ºC to +70 ºC Operating,
-40 ºC to +85 ºC Non-Operating |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107 |
|---|
| Salt Fog: | MIL-STD-202F, Method 107D Cond. A |
|---|
| Fungus: | MIL-STD-810C, Method 508.2 |
|---|
