| General Parameters: |
|---|
| Status: | Active |
|---|
| Center Frequency: | 1340 MHz |
|---|
| Insertion Loss: | 0.5 dB max. |
|---|
| Bandwidth: | 155 MHz |
|---|
| 3 dB Bandwidth: | 155 MHz |
|---|
| VSWR: | 1.5:1 max. |
|---|
| Rejection: | -80 dB @ DC to 930 MHz, -80 dB @1750 to 4500 MHz |
|---|
| Connectors In/Out: | N-Type Female Connectors |
|---|

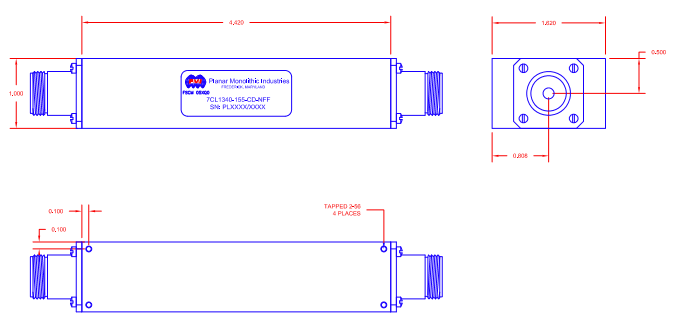

| Size: | 4.42" x 1.00" x 1.62" |
|---|
| Environmental Ratings: |
|---|
| Temperature: | -55 ºC to +85 ºC Operating, -65 ºC to +125 ºC Non-Operating |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107 |
|---|
| Salt Fog: | MIL-STD-202F, Method 107D Cond. A |
|---|
| Fungus: | MIL-STD-810C, Method 508.2 |
|---|
