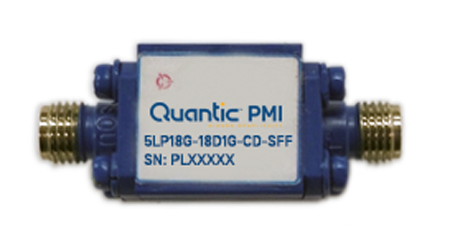

General Parameters: |

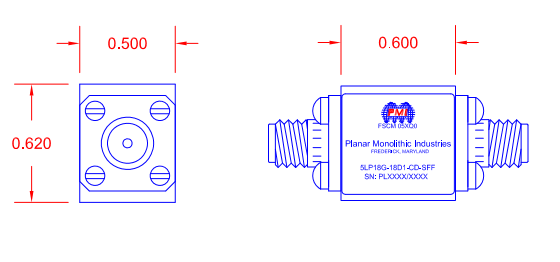

Status: | Active |
Passband: | DC to 18000 MHz |
Cut-Off Frequency: | 18100 MHz |
Passband Insertion Loss: | 1.0 dB Max |
Rejection @ 140 MHz: | -30 dB, Rejection @ 19000 MHz, -60 dB, Rejection from 20000 MHz to 28000 MHz |
Passband VSWR: | 1.5:1 max |
Connectors In/Out: | 2.92mm (F) |
Size: | 2.1" (L) x 0.785" (W) x 0.50" (H) |
Weight: | 1.0 oz Typ |
Finish: | Painted Blue |
Environmental Ratings: |
Temperature: | -55 to 85 Degree C |
Non-Operating: | -65 to 125 Degree C |
Humidity: | MIL-STD-202F, Method 103B Cond. B |
Shock: | MIL-STD-202F, Method 213B Cond. B |
Vibration: | MIL-STD-202F, Method 204D Cond. B |
Altitude: | MIL-STD-202F, Method 105C Cond. B |
Salt Fog: | MIL-STD-202F, Method 107D Cond. A |
Fungus: | MIL-STD-810C, Method 508.2 |
Temperature Cycle: | MIL-STD-202F, Method 107 |
