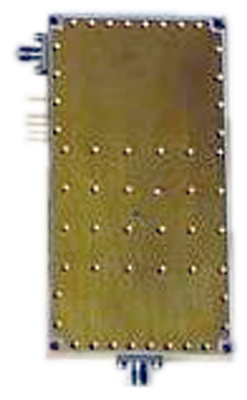

| General Parameters: |
|---|
| Status: | Active |
|---|
| No of Filter Channels: | 4 |
|---|
| Operating Frequency (GHz): | 0.43 to 1.07 |
|---|
| Frequency Min (GHz): | 0.43 |
|---|
| Frequency Max (GHz): | 1.07 |
|---|
| Center Frequency (GHz): | Channel 1: 4.3 GHz
Channel 2: 5.3 GHz
Channel 3: 6.95 GHz
Channel 4: 1.02 GHz |
|---|
| 3 dB Bandwidth (GHz): | Channel 1: 0.06 GHz
Channel 2: 0.14 GHz
Channel 3: 0.19 GHz
Channel 4: 0.1 GHz |
|---|
| Isolation (dB): | 70 dB Min |
|---|
| Insertion Loss (dB): | 7 dB |
|---|
| Switching Speed: | 1 µs |
|---|
| Control Type: | TTL |
|---|
| DC Voltage: | +5 VDC / -5 VDC |
|---|
| DC Current (mA): | 250 mA / 150 mA |
|---|
| VSWR: | 2.0:1 Max |
|---|
| RF Power Rating: | 27 dBm CW Max |
|---|
| Rejection: | Channel 1: -55 dBc Min @ DC to 3.1 GHz & 0.55 to 2 GHz
-60 dBc Min @ 2 to 3 GHz
-60 dBc Min @ 7.9 to 8.6 GHz
Channel 2: -55 dBc Min @ DC to 0.32 GHz & 0.74 to 2 GHz
-60 dBc Min @ 2 to 3 GHz
-60 dBc Min @ 7.9 to 8.6 GHz
Channel 3: -55 dBc Min @ DC to 0.41 GHz & 0.98 to 2 GHz
-60 dBc Min @ 2 to 3 GHz
-60 dBc Min @ 7.9 to 8.6 GHz
Channel 4: -55 dBc Min @ DC to 0.82 GHz & 1.22 to 2 GHz
-60 dBc Min @ 2 to 3 GHz
-60 dBc Min @ 7.9 to 8.6 GHz |
|---|
| Connectors: | SMA Female |
|---|
| Size: | 4.5" x 2.5" x 0.69" |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -40 °C to +85 °C |
|---|
| Non-Operating Temperature: | -40 ºC to +100 ºC |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
|---|
