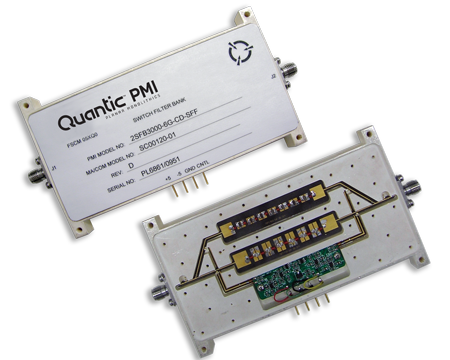

| General Parameters: |
|---|
| Status: | Active |
|---|
| No of Filter Channels: | 2 |
|---|
| Operating Frequency (GHz): | 0.5 to 6 |
|---|
| Frequency Min (GHz): | 0.5 |
|---|
| Frequency Max (GHz): | 6 |
|---|
| Center Frequency (GHz): | Channel 1: 1.9 GHz
Channel 2: 1.1 GHz |
|---|
| Passband Frequency (GHz): | Channel 1: 1.868 to 1.932 GHz
Channel 2: 1.068 to 1.132 GHz |
|---|
| Isolation (dB): | 60 dB Min |
|---|
| Insertion Loss (dB): | 7 dB |
|---|
| Switching Speed: | 50 ms |
|---|
| Control Type: | CMOS |
|---|
| DC Voltage: | +5 VDC
-5 VDC |
|---|
| DC Current (mA): | 70 mA |
|---|
| VSWR: | 2.0:1 Max |
|---|
| RF Power Rating: | 30 dBm CW Max |
|---|
| Rejection: | Cannel 1: -60 dB Min @ 2.015 to 6 GHz
-60 dB Min @ DC to 1.785 GHz
Channel 2: -60 dB Min @ 1.215 to 6 GHz
-60 dB Min @ DC to 0.985 GHz |
|---|
| Connectors: | SMA Female |
|---|
| Size: | 2.7" x 4.4" x 0.44" |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -40 °C to +85 °C |
|---|
| Non-Operating Temperature: | -40 ºC to +100 ºC |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
|---|
