2SFB-8G26G-CD-SFF Rev C Active

2-Channel Switch Filter Bank

Buy Now
2SFB-8G26G-CD-SFF Rev C
Product Feature

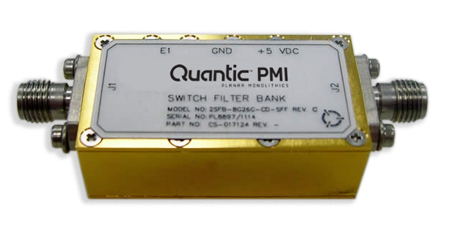

Quantic PMI Model 2SFB-8G26G-CD-SFF Rev C is a 2-channel switch filter bank providing a low-pass filter that passes 8.62 to 8.7 GHz with a rejection band of 17.24 to 17.4 GHz. In bypass mode the unit passes signals from 8 to 26.5 GHz. This unit is powered by a +5 V single supply and the control logic is TTL/CMOS +5 VDC compatible. Package size is 1.5" x 0.8" x 0.5" with SMA female connectors.

Product Specifications

General Parameters:
Status: Active
No of Filter Channels: 2
Operating Frequency (GHz): 8 to 26.5
Frequency Min (GHz): 8
Frequency Max (GHz): 26.5
Isolation (dB): 50 dB Min (Between 8 to 26.5 GHz) - Measured >50 dB
Insertion Loss (dB): 5.5 dB
Switching Speed: 100 ns
Control Type: TTL/CMOS
DC Voltage: +5 VDC ± 5%
DC Current (mA): 100 mA Max
VSWR: 2.0:1 Max across frequency range - Measured 1.45:1
RF Power Rating: AC coupled
Connectors: SMA Female - removable
Size: 1.5" x 0.8" x 0.5"
Export Classification (ECCN): EAR99
Environmental Ratings:
Operating Temperature: -10 ºC to +70 ºC
Non-Operating Temperature: -30 ºC to +100 ºC
Humidity: <= 95% Non-Condensing at 40 ºC
Altitude: Sea Level to 15, 000 Feet
