11DP-3D8G/12G-CD-SFF Active

Diplexer Bandpass Filter

Product Feature

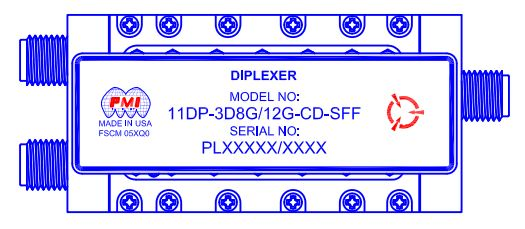

Quantic PMI Model 11DP-3D8G/12G-CD-SFF is a diplexer bandpass filter with SMA female connectors input and output. The low passband covers 3.4 to 4.2 GHz and the high passband covers 10.9 to 13.1 GHz.  The channel-to-channel isolation is greater than 70 dB.

Product Specifications

General Parameters:
Status: Active
Center Frequencies, Fo: CH 1 - 3.8
CH 2 - 12.0 GHz
Size: 2.00" x 1.00" x 0.75"
Low Passband: 3.4 to 4.2 GHz mMn
High Passband: 10.9 to 13.1 GHz Min
Insertion Loss(J1): <=1 dB
Return Loss (Passband): >=15 dB
CH to CH Isolation: >=70 dB
Finish: Painted Blue
Environmental Ratings:
Operating Temperature: 0 ºC to +55 ºC
Non-Operating Temperature: -65 ºC to +125 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
