11CD0043-1 Active

RF Amplifier

Product Feature

Quantic PMI Model 11CD0043-1 is an RF amplifier designed to operate over the 2 to 6 GHz frequency range with a gain of 31 dB and a gain flatness of ±1.3 dB with a noise figure of 3.8 dB.  Housing size is 1.0" x 0.75" x 0.25" with removable SMA female connectors.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 2 to 6
Frequency Min (GHz): 2
Frequency Max (GHz): 6
Gain (dB): 31 ± 1.5 dB
Gain Flatness: ±1.3 dB
Noise Figure (dB): 3 dB Nom,
3.8 dB over temperature
OP1dB (dBm): 27 dBm
VSWR In/Out: 2.0:1 Max
DC Voltage (VDC): +15 ± 0.5 V
DC Current (mA): 450 mA
OIP2: 46 dBm
OIP3: 36 dBm
Connectors: SMA Female

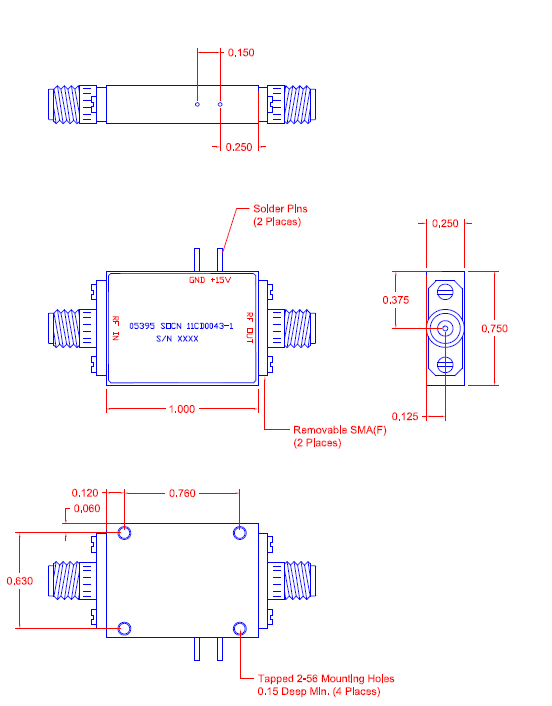

Size: 1.0" x 0.75" x 0.25"
Finish: Gold Plated
Power Supply: +15 ± 0.5 V @ 450 mA
Max Input Power: 30 dBm CW
Sealing: Non-Hermetic
Salt Fog: MIL-STD-202F, Method 101D+EST Cond. B
Fungus: MIL-STD-810F, Method 508.5
Environmental Ratings:
Temperature (Operating): 0 °C to +85 °C
Temperature (Storage): -54 °C to +85 °C
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. C
Vibration: MIL-STD-202F, Method 204D Cond. B
