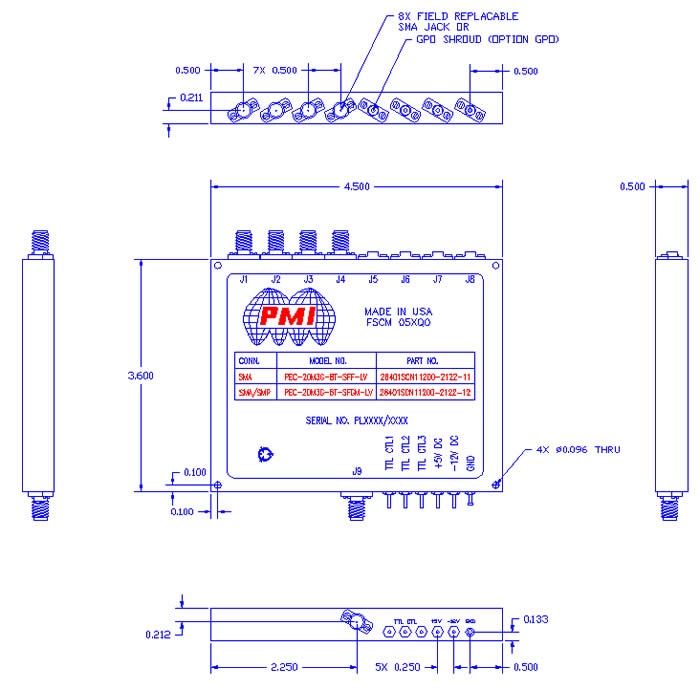

Quantic PMI has designed and manufactured various switch matrix assemblies by using Quantic PMI standard or custom Solid-State Switches and power dividers all assembled into a single integrated module. This single integrated module contains three Single Pole, Eight Throw Switches integrated with power dividers that operate over the 20 MHz to 3.0 GHz frequency range. A complete Product Feature along with electrical and mechanical specifications can be seen by clicking on the following image.
Click here to view test data for Quantic PMI Model No. PEC-20M3G-8T-SFGM-LV.
Based upon various options, both a low band and high band assembly was produced by utilizing the same switch, but with different power dividers. Quantic PMI was able to offer a low band switch matrix covering 20 MHz to 500 MHz and a high band switch matrix covering 1.0 to 3.0 GHz.
Other frequency ranges and configurations are available. Please contact Quantic PMI with your specific requirement at
