Single Pole - Twenty-Four Throw Switches (SP24T)

Quantic PMI offers a variety of Single Pole - Twenty-Four Throw Switches (SP24T) designs which can include operating frequency ranges up to 70 GHz; connector options; reflective and absorptive configurations; excellent isolation; low insertion loss; high power capabilities; hermetic sealing; military or space screening; amplitude & phase matching and dual use components for surface mount or connectorized applications.

If you do not see exactly what you need, please click here, and send us your requirement(s) or questions so we can propose an instant solution.

Part NumberStatusReflective / AbsorptiveFrequency Min (GHz)Frequency Max (GHz)Insertion Loss (dB)Isolation (dB)Switching Speed
P24T-0R5G18G-60-T-SFF
Preliminary		PreliminaryAbsorptive0.5188.5 dB Max60 dB Min100 ns Max
P24T-0R5G18G-60-T-SFF-OPT100M18
Preliminary		PreliminaryAbsorptive0.1188.5 dB Max60 dB Min100 ns Max

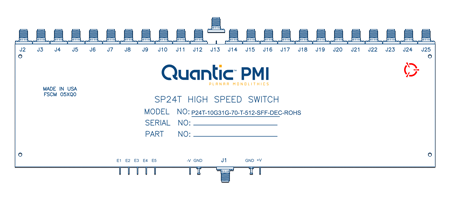

P24T-10G31G-70-T-512-SFF-DEC-ROHS
Active		ActiveAbsorptive103112 dB Goal,
14 dB Max		70 dB Min100 ns Max
P24T-10G31G-90-T-512-SFF-DEC
Preliminary		PreliminaryAbsorptive103113 dB Goal,
15 dB Max		90 dB Min100 ns Max
P24T-10G31G-70-T-512-SFF-DEC
Preliminary		PreliminaryAbsorptive103112 dB Goal,
14 dB Max		70 dB Min100 ns Max
P24T-10G31G-80-T-512-SFF-DEC
Preliminary		PreliminaryAbsorptive103113 dB Goal,
15 dB Max		80 dB Min100 ns Max
P24T-10G31G-60-T-512-SFF-DEC
Preliminary		PreliminaryAbsorptive103112 dB Goal,
14 dB Max		60 dB Min100 ns Max
P24T-0R5G18G-60-R-SFF
Preliminary		PreliminaryReflective0.5187.5 dB Max60 dB Min100 ns Max
P24T-0R5G18G-60-T-SFF-OPT26
Preliminary		PreliminaryAbsorptive265 dB Max90 dB Min100 ns Max
