Single Pole - Twelve Throw Switches (SP12T)

Quantic PMI offers a variety of Single Pole - Twelve Throw Switches (SP12T) designs which can include operating frequency ranges up to 70 GHz; connector options; reflective and absorptive configurations; excellent isolation; low insertion loss; high power capabilities; hermetic sealing; military or space screening; amplitude & phase matching and dual use components for surface mount or connectorized applications.

If you do not see exactly what you need, please click here, and send us your requirement(s) or questions so we can propose an instant solution.

Part NumberStatusReflective / AbsorptiveFrequency Min (GHz)Frequency Max (GHz)Insertion Loss (dB)Isolation (dB)Switching Speed
P12T-0R5G18G-80-T-SFF
Preliminary		PreliminaryAbsorptive0.5185.5 dB Max80 dB Min100 ns Max
P12T-0R5G18G-60-T-SFF-OPT8
Preliminary		PreliminaryAbsorptive0.584 dB Max60 dB Min100 ns Max
P12T-0R126D5-60-R-292FF
Preliminary		PreliminaryReflective0.126.59 dB Max60 dB Min100 ns Max
P12T-0R126D5-60-T-292FF
Preliminary		PreliminaryAbsorptive0.126.510 dB Max60 dB Min100 ns Max
P12T-0R5G40G-60-T-292FF
Preliminary		PreliminaryAbsorptive0.54010 dB Max60 dB Min100 ns Max
P12T-6R0G18R0G-70-T-SFF-DEC
Preliminary		PreliminaryAbsorptive6184.3 dB Max (6 to 12 GHz),
5.6 dB Max (12 to 18 GHz)		70 dB Min700 ns Max (On/Off)
P12T-0R5G18G-60-R-SFF
Preliminary		PreliminaryReflective0.5185 dB Max60 dB Min100 ns Max
P12T-0R5G40G-60-R-292FF
Preliminary		PreliminaryReflective0.54010 dB Max60 dB Min100 ns Max
P12T-6R0G18R0G-70-T-SFF
Preliminary		PreliminaryAbsorptive6184.3 dB Max (6 to 12 GHz),
5.6 dB Max (12 to 18 GHz)		70 dB Min700 ns Max (On/Off)

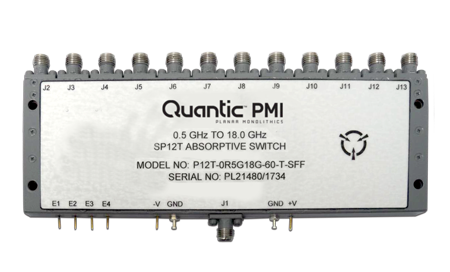

P12T-0R5G18G-60-T-SFF
Active		ActiveAbsorptive0.5185.5 dB Max60 dB Min100 ns Max
P12T-8G18G-60-T-SFF-PM-ROHS
Preliminary		PreliminaryAbsorptive8186.5 dB Max60 dB Min50 to 120 ns Max (ON/OFF)
