Single Pole - Six Throw (SP6T)

Quantic PMI offers a variety of Single Pole - Six Throw (SP6T) designs which can include operating frequency ranges up to 70 GHz; connector options; reflective and absorptive configurations; excellent isolation; low insertion loss; high power capabilities; hermetic sealing; military or space screening; amplitude & phase matching and dual use components for surface mount or connectorized applications.

If you do not see exactly what you need, please click here, and send us your requirement(s) or questions so we can propose an instant solution.

Part NumberStatusFrequencyFrequency MinFrequency MaxReflective / AbsorptiveIsolationInsertion LossSwitching Speed

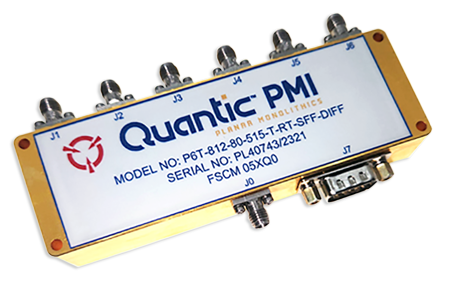

P6T-812-80-515-T-RT-SFF-DIFF
Active		Active8.0 to 12.0 GHz, 10.27 ± 1 GHz Optimized
-
-
-
80 dB Min (10.27 ± 1 GHz),
70 dB Min (8 - 12 GHz)		4.0 dB Max (10.27 ± 1 GHz),
5.0 dB Max (8 - 12 GHz)		50 ns Max, Measure from 50% Stobe
P6T-0R5G18G-1W-70-R-SFF
Preliminary		Preliminary0.5 TO 18 GHz0.5 GHz18 GHzReflective60 dB Min4.25 dB MaxRISE: 10ns Typ, 15ns Max
FALL: 10ns Typ, 15ns Max
DELAY ON: 75ns Typ, 100ns Max
DELAY OFF 75ns Typ, 100ns Max
P6T-2G18G-55-R-512-SFF-ROHS
Active		Active2 to 18 GHz2 GHz18 GHzReflective55 dB Min - Measured 73.7 dB7.0 dB Max - Measured 4.5 dB+25 dBm CW Max
P6T-17G40G-60-T-512-292FF
Preliminary		Preliminary17.0 to 40.0 GHz17.0 GHz40.0 GHzAbsorptive60 dB max.6.5 dB max.50 ns max.
P6T-0D418-75-T-SFF
Preliminary		Preliminary0.4 to 18.0 GHz0.4 GHz18.0 GHzAbsorptive75 dB min.3.0 dB @ 0.4 to 10.0 GHz max.
4.0 dB @ 10.0 to 18.0 GHz max.		Rise/Fall Time: 50 ns max.
On/Off Time: 100 ns max.
P6T-30M6-70-T-SFF
Preliminary		Preliminary0.03 to 6.0 GHz0.03 GHz6.0 GHzAbsorptive70 dB min.3.0 dB max.Rise/Fall Time: 80 ns max.
On/Off Time: 200 ns max.
P6T-2G20G-55-T-SFF
Active		Active2.0 to 20.0 GHz2.0 GHz20.0 GHzAbsorptive55 dB Min4.5 dB MaxRISE: 30 ns Max 10% to 90%
FALL: 30 ns Max 90% to 10%
P6T-0R5G18G-60-T-512-SFF-JP
Preliminary		Preliminary0.5 to 18.0 GHz0.5 GHz18 GHzAbsorptive60 dB max4 dB max50 ns max (On - 50% TTL to 90% RF), (Off - 50% TTL to 10% RF)
P6T-33G38G-60-T-5-292FF
Preliminary		Preliminary33.0 to 38.0 GHz33 GHz38 GHzAbsorptive60 dB max.6.5 dB max.50 ns max
P6T-4G8G-70-T-SFF
Preliminary		Preliminary4.0 to 8.0 GHz4 GHz8 GHzAbsorptive70 dB min.2.9 dB max.500 ns max.
P6T-7G18G-55-R-SFF
Preliminary		Preliminary7.0 to 18.0 GHz7 GHz18 GHzReflective55 dB min.4.2 dB max.30 ns max. (50% TTL to 90% RF), 15 ns max. (10% RF to 90% RF)
PMSN-6DT-05-STD-JW-RL
Preliminary		Preliminary0.5 to 18.0 GHz0.5 GHz18 GHzAbsorptive60dB min4.25dB maxRise/Fall: 10ns typ, 15ns max, Delay On/Off: 75ns typ, 100ns max
P6T-0R5G18G-60-R-1W
Preliminary		Preliminary0.5 to 18.0GHz0.5 GHz18 GHzReflective60 dB min.4.5 dB max.Rise/Fall Time: 15 ns max.
Delay On/Off: 75 ns max.
P6T-0R518G-60-T-515-SFF-MSN
Preliminary		Preliminary0.5 to 18.0 GHz0.5 GHz18 GHzAbsorptive60 dB4.25 dBRise/Fall Time: 10 ns typ., 15 ns max.
Delay On/Off: 75 ns typ., 100 ns max.
P6T-0R5G18G-60-R-SFF
Active		Active0.5 to 18.0 GHz0.5 GHz18 GHzReflective60 dB Min - Measured 77 dB3.5 dB Max - Measured 3.3 dB100 ns Max - Measured <20 ns
P6T-0R5G18G-60-T-SFF
Active		Active0.5 to 18.0 GHz0.5 GHz18 GHzAbsorptive60dB min.4.25dB max.100 nsec max.
P6T-7G18G-45-T-SFF
Active		Active7.0 to 18.0 GHz7 GHz18 GHzAbsorptive45 dB Min (7.0 to 8.0 GHz),
45 dB Min (8.0 to 12.4 GHz),
40 dB Min (12.4 to 18.0 GHz)		2.0 dB Max (7.0 to 8.0 GHz),
3.0 dB Max (8.0 to 12.4 GHz),
3.5 dB Max (12.4 to 18.0 GHz)		30 ns Max (90% RF to 10% RF)
P6T-2G18G-60-T-512-SFF-LV
Active		Active2.0 to 18.0 GHz2 GHz18 GHzAbsorptive60 dB Max - Measured 78 dB4 dB Max - Measured 3.98 dB50 ns Max - Measured 30 ns
P6T-2G18G-60-T-512-SFF-LV-SP
Active		Active2.0 to 18.0 GHz2 GHz18 GHzAbsorptive60 dB Max4 dB Max50 ns Max (On - 50% TTL to 90% RF), (Off - 50% TTL to 10% RF)
P6T-2G18G-55-R-512-SFF
Active		Active2 to 18 GHz2 GHz18 GHzReflective55 dB Min - Measured 73.7 dB7.0 dB Max - Measured 4.5 dB15 ns Max
